Blue Sea Systems

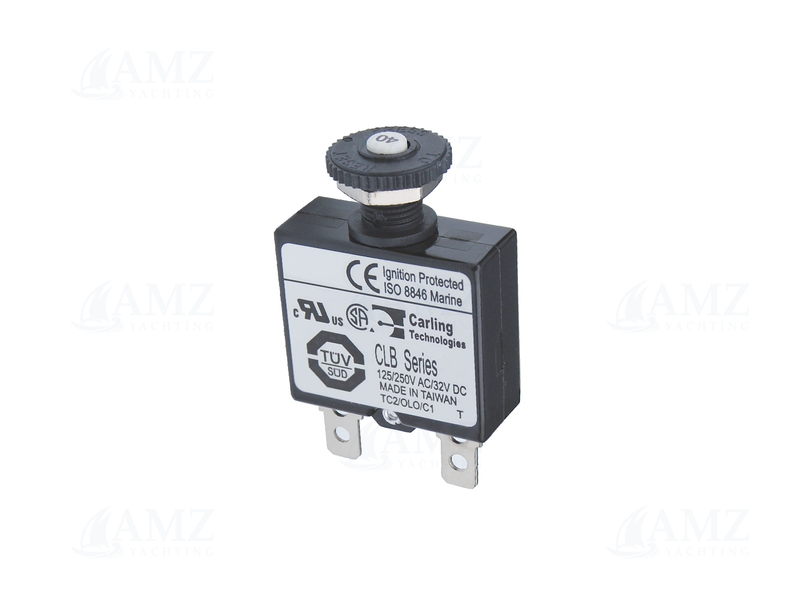

Push Button Circuit Breaker Reset Only

SKU: -
Επιλέξτε Current variant
Προσθήκη στο Καλάθι

Περιγραφή

The push button circuit breaker provides economical circuit protection for 3 to 40 Amp loads when switching is provided elsewhere or not required.


Features:

  • Branch circuit breakers - also used for 24-hour circuit protection
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • Trip Free design cannot be held ON during fault current condition
  • Optional push button waterproof boot protects circuit breaker in wet environments
  • Ignition protected - Safe for installation aboard gasoline powered boats


Circuit breaker type: Thermal trip - manual push button reset only.

Χαρακτηριστικά

  • Τάση εισόδου : 32V DC
  • Τάση λειτουργίας : 12V|24V
  • Extras : Ignition protected
  • Σπείρωμα : 1/4 Male quick connect
  • Τύπος τοποθέτησης : Front panel mount
  • Διαστάσεις : 58.60x35.03x14.50mm
  • Βάρος : 0.03kg
7,68 €
