Bi-directional NMEA2000 Interface Bi-directional NMEA2000 Interface
Actisense

Actisense

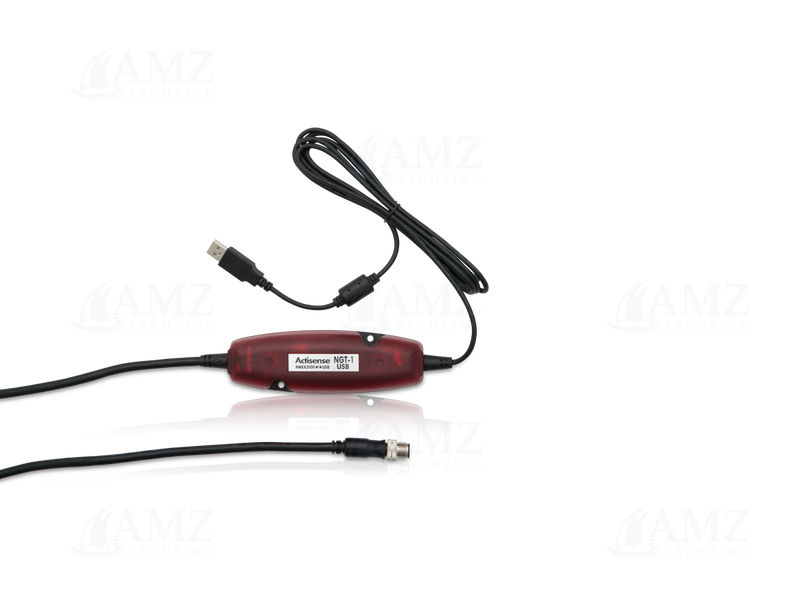

Bi-directional NMEA2000 Interface

SKU: NGT-1-USB
Available
Add to Cart
Years Warranty
Official Distributor

Description

The NGT-1 is an intelligent NMEA 2000 gateway able to precisely Transfer messages to and from the NMEA 2000 bus.

It is compatible with a wide range of Chartplotters, display and configuration applications available for PCs.


Gateway not in production.

Limited stock available.


Replacement NGX-1-USB

Specifications

  • Input supply voltage : 9-29 V DC
  • Nominal voltage : 12V|24V
  • Consumption : 35mA @ 12 VDC
  • Connectivity : NMEA2000
  • NMEA2000 inputs : Yes
  • NMEA2000 outputs : Yes
  • Serial port compatibility : RS422|RS232
  • Baud rate : 4800 to 230400 bps
  • Data transfer/conversion : NMEA2000 to NMEA2000 on USB
  • Connector type : Micro-C (NMEA2000)|USB

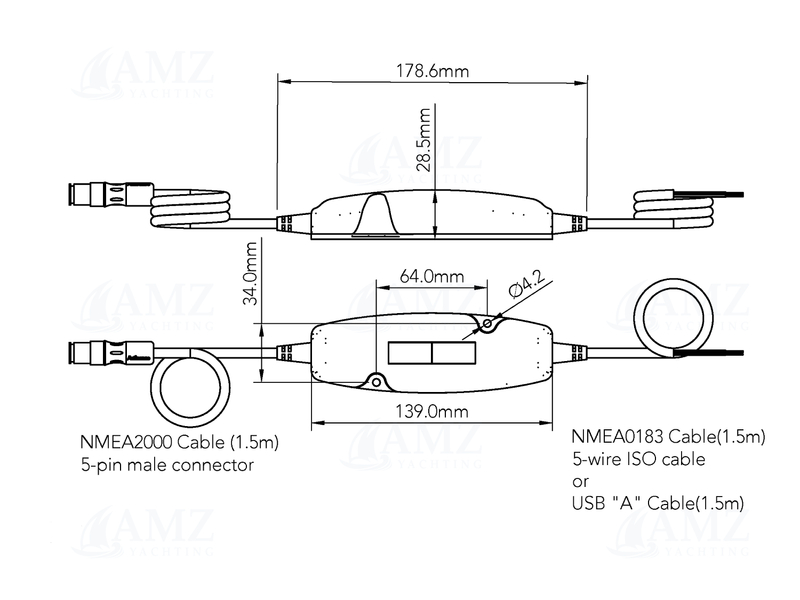

  • Dimensions : 179mm(L)x46mm(W)x28.5mm(H)
  • Product weight : 220g

Documents

banner

Network diagram

  • Sends and receives pure NMEA 2000 data
  • Configure and flash-update Actisense products on the NMEA 2000 bus
  • Use with NMEA Reader to help diagnose network problems
  • Provides a rule-enforcing firewall between a PC and an NMEA 2000 bus


263,15 €
Add to Cart
