e-Series Selector Battery Switch with AFD e-Series Selector Battery Switch with AFD e-Series Selector Battery Switch with AFD e-Series Selector Battery Switch with AFD
Blue Sea Systems

Blue Sea Systems

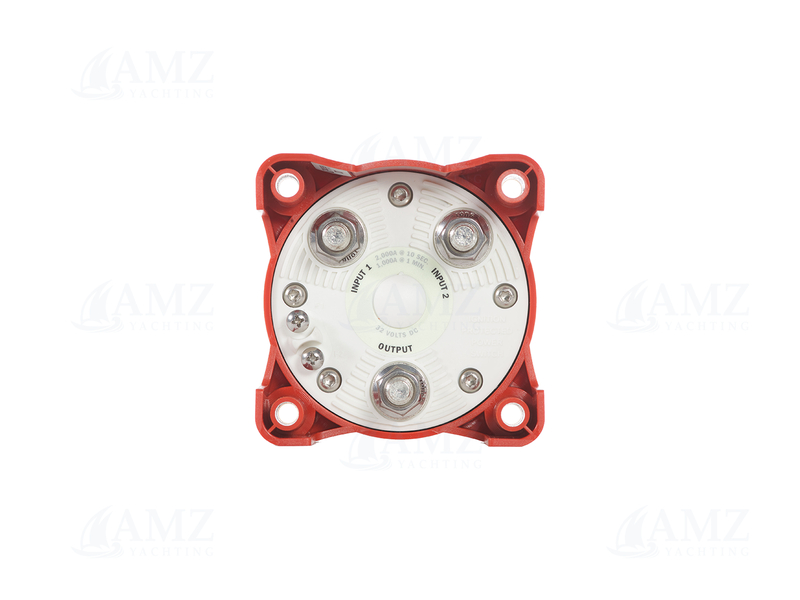

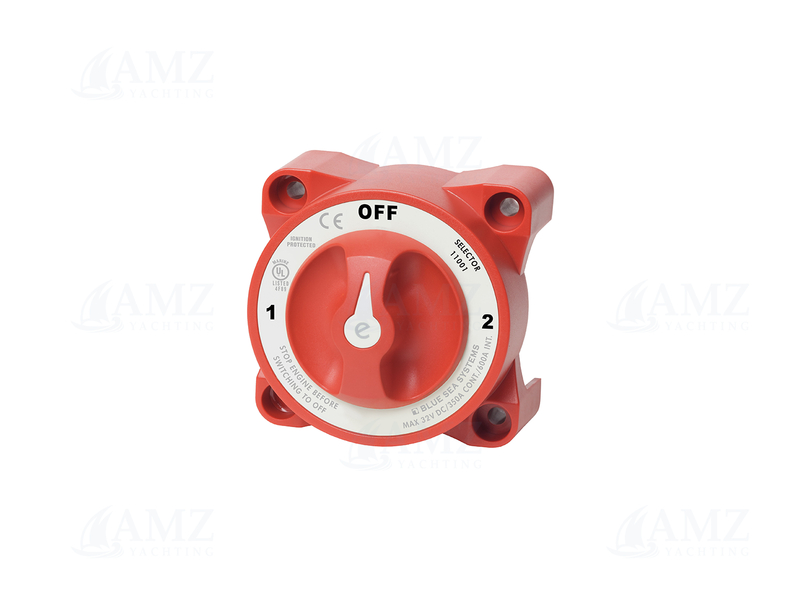

e-Series Selector Battery Switch with AFD

SKU: 11001
Available
Add to Cart

Description

Switches a single battery to a single load group.

Includes AFD (Alternator Field Disconnect)

Ignition protected—safe for installation aboard gasoline powered boats

Specifications

  • Input supply voltage : 32V DC
  • Nominal voltage : 12V|24V
  • Permanent current : 325A
  • Maximum current (peak) : 1200A
  • Extras : 2 battery inputs|AFD
  • Action ( )=momentary : ON-OFF-ON
  • Circuit : 3
  • Switch positions : 3
  • Color : Red

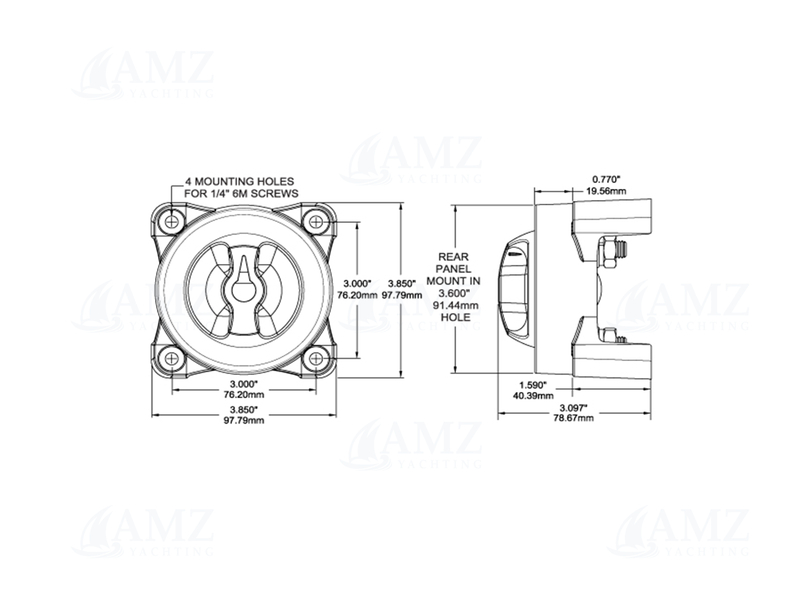

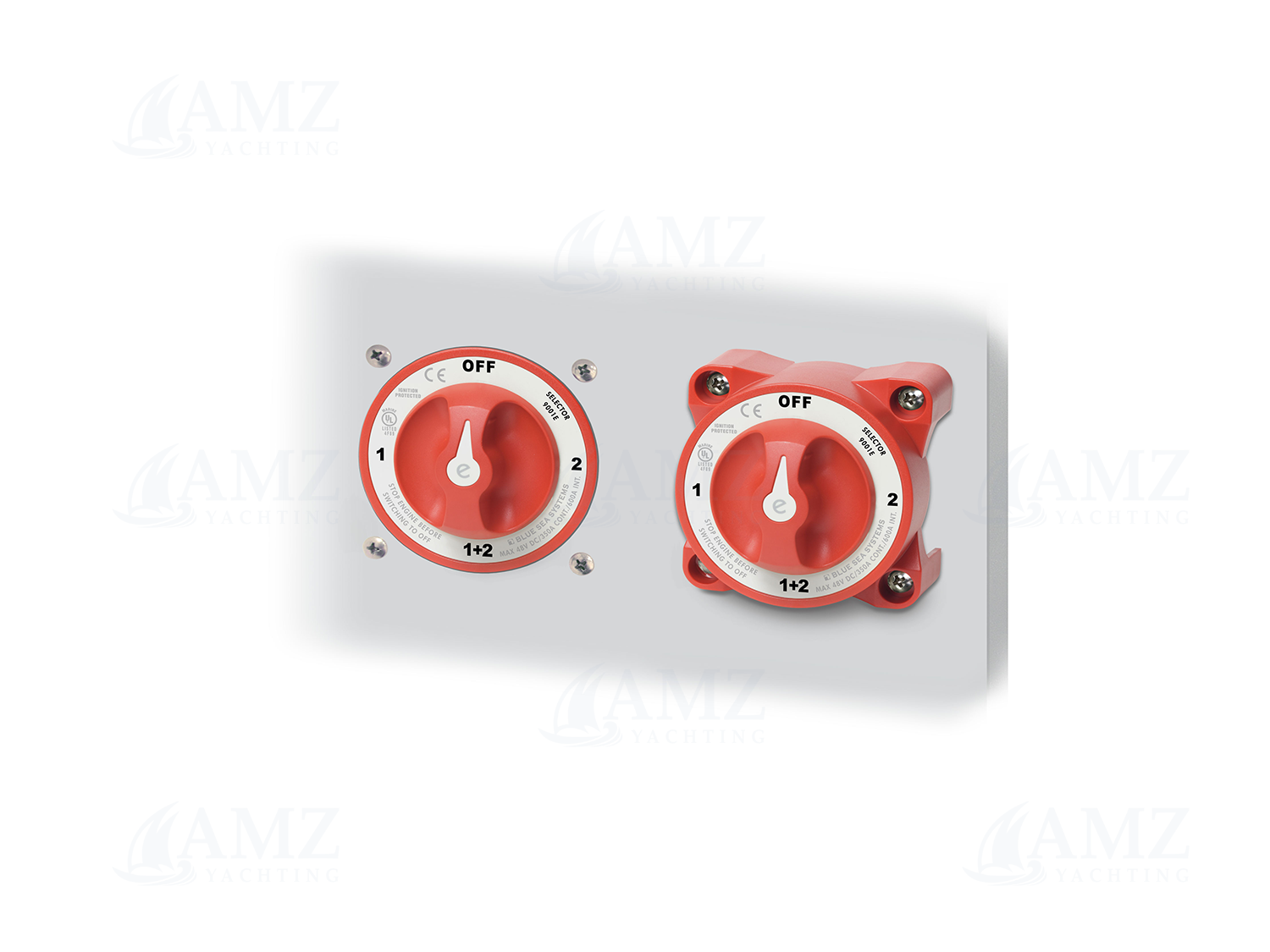

  • Mounting & Support : Surface mount|Rear panel mount
  • Dimensions : 97x97x78mm
  • Product weight : 0.59kg

Documents
