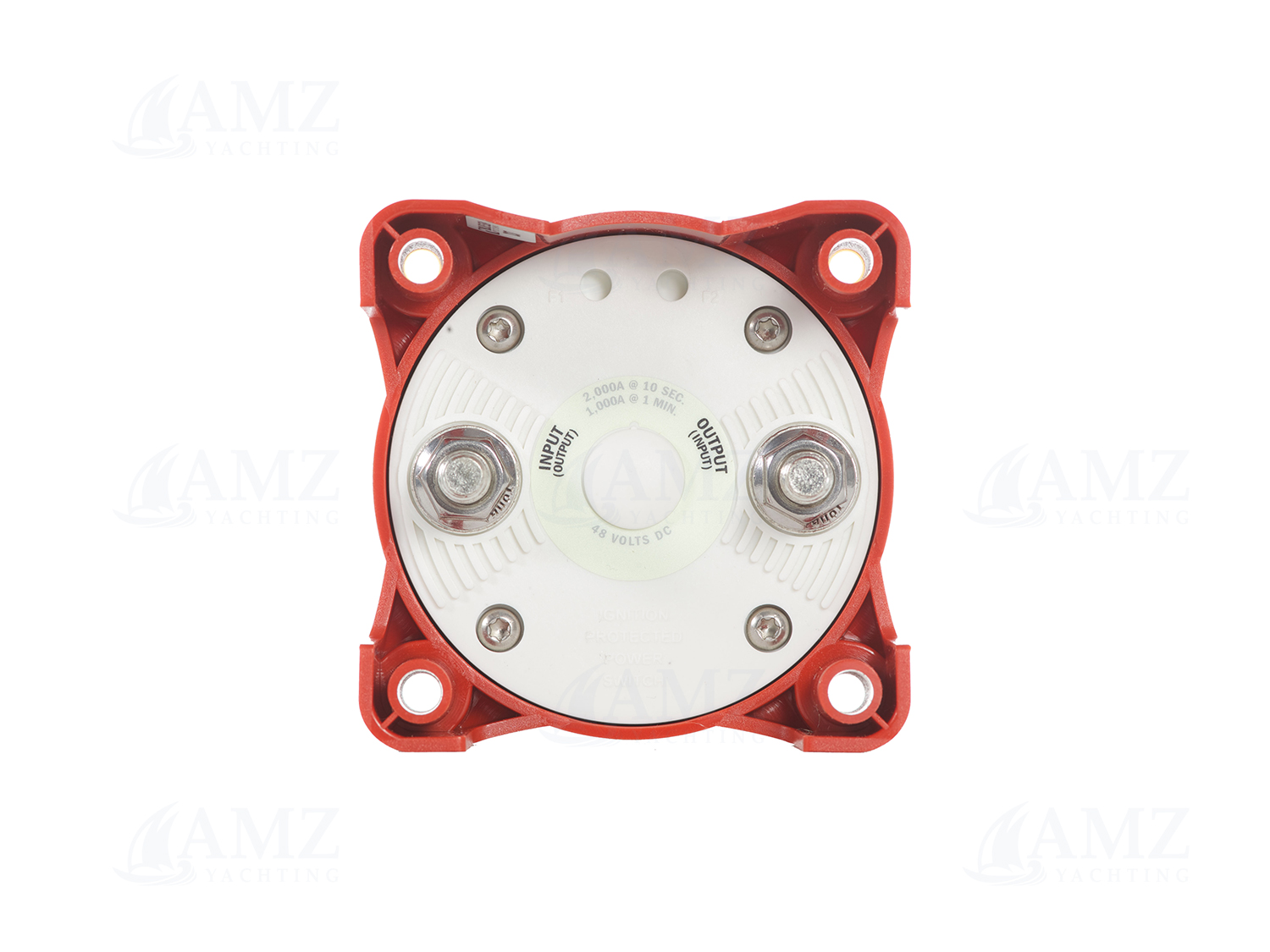

e-Series Single Circuit On/Off Battery Switch

SKU: 9003e
Available
Add to Cart

Description

Switches a single battery to a single load group.


Features:

  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting


Specifications

  • Input supply voltage : 48V DC
  • Nominal voltage : 12V|24V|48V
  • Permanent current : 350A
  • Maximum current (peak) : 1200A
  • Action ( )=momentary : OFF-ON
  • Circuit : Single
  • Switch positions : 2
  • Color : Red
  • Mounting & Support : Surface mount|Rear panel mount
  • Dimensions : 98x98x76mm
  • Product weight : 0.59kg

Documents

68,38 €
