Blue Sea Systems

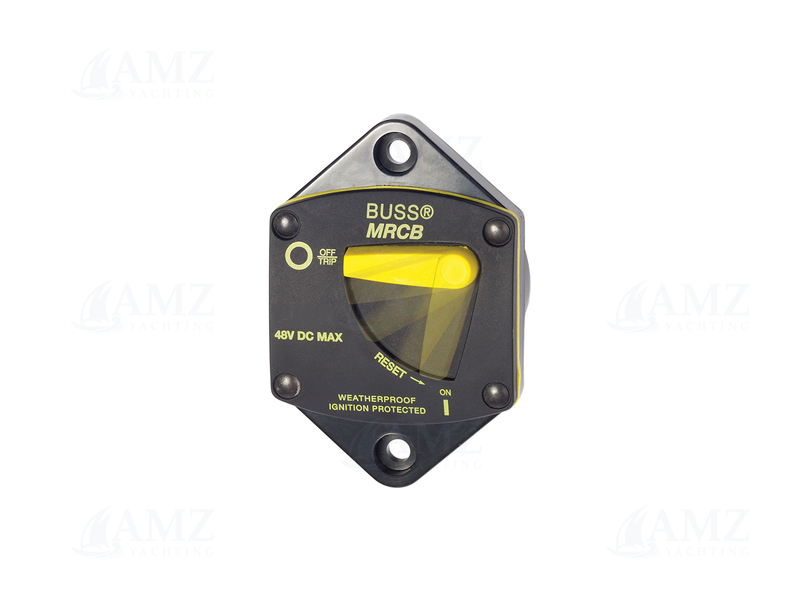

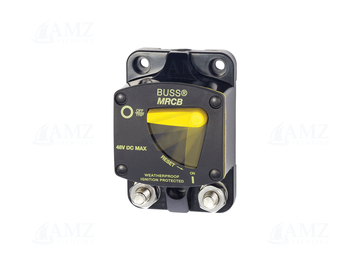

187-Series Circuit Breaker - Panel Mount

SKU: -
Choose Current variant
Add to Cart

Description

Thermal circuit breakers provide heavy duty circuit protection for 25 to 200 Amp loads when switching and circuit protection are both required.


Features:

  • Combines switching and circuit protection into a single device*
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large Clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 M8 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Meets SAE J1171 external ignition protection requirements


* Do not use as a switch where high inrush currents are expected.

Specifications

  • Input supply voltage : 48V DC
  • Nominal voltage : 12V|24V|48V
  • Extras : Ignition protected
  • Mounting & Support : Front panel mount

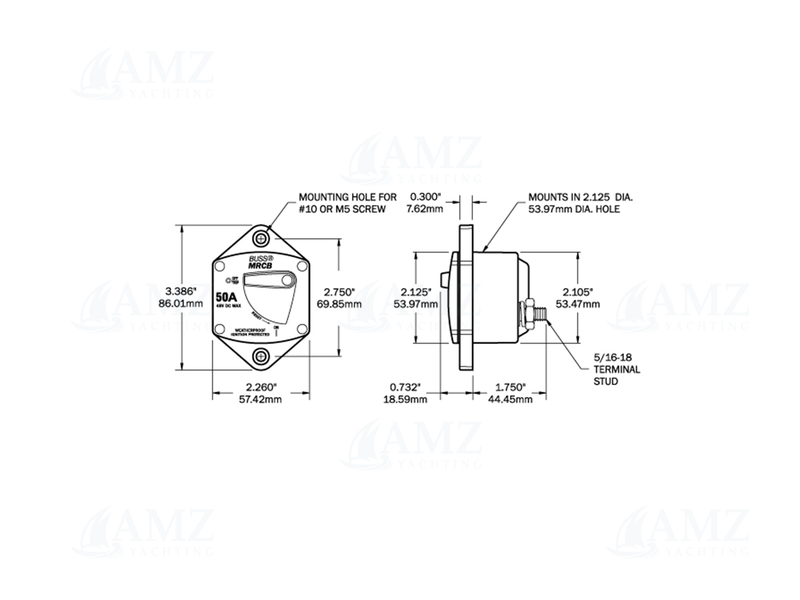

  • Dimensions : 86.01x57.42x44.45mm
  • Product weight : 0.23kg
