Victron energy

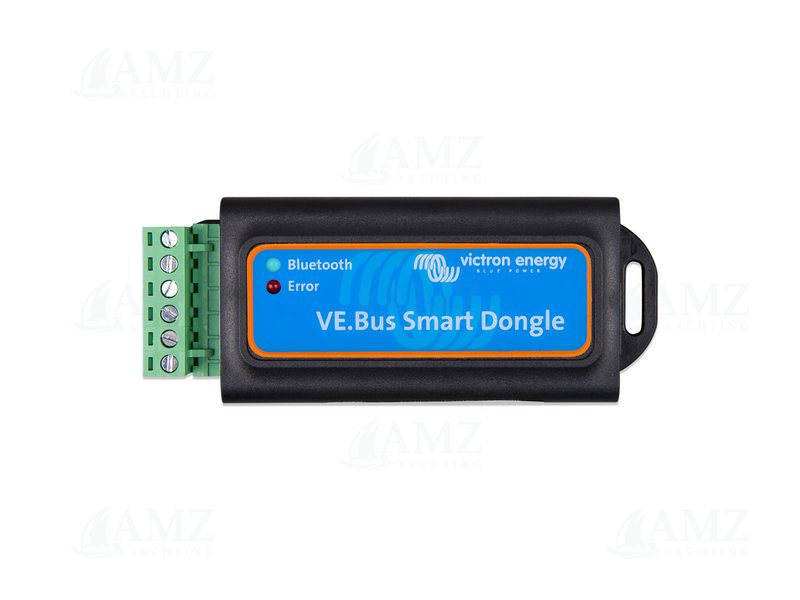

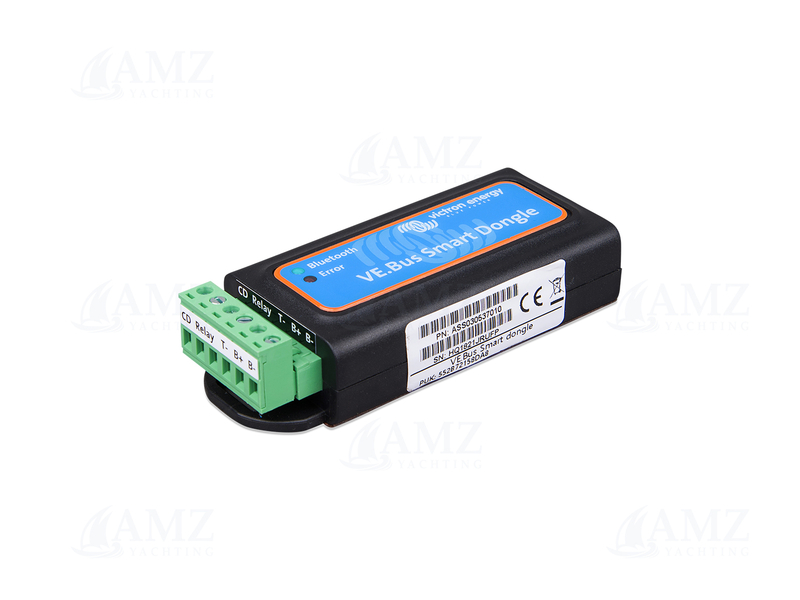

VE.Bus Smart Dongle

SKU: ASS030537010
Available
Add to Cart
Years Warranty

Description

The VE.Bus Smart dongle is a Bluetooth accessory for inverter/chargers and inverters with a VE.Bus port.


The dongle has the following features and functionalities:

  • Remotely control the inverter/charger via Bluetooth and the VictronConnect app. The inverter/charger can be switched to on, off or charger-only and the AC input current limit can be adjusted.
  • Remotely monitor the inverter/charger via Bluetooth and the VictronConnect app. The AC and DC parameters, device status, warnings or alarms can be monitored. This includes Instant Readout to display the most important data of the inverter/charger on the Device list page without the need to connect to the product. This includes visual notifications of warnings, alarms, and errors that enable diagnostics at a glance. Please see the VictronConnect manual for details.
  • The dongle can be connected to a single inverter/charger or multiple inverter/chargers set up in parallel and/or 3-phase.
  • Measures the battery temperature and voltage.
  • Can act as a battery temperature and voltage sensor for an inverter/charger and/or for VE.Smart Networking.
  • Can be connected to an external temperature sensor, rather than using its own (default) temperature sensor.


Specifications

  • Input supply voltage : 8-70V DC
  • Nominal voltage : 12V|24V|48V
  • Connectivity : Bluetooth
  • Connector type : Ethernet (RJ45)

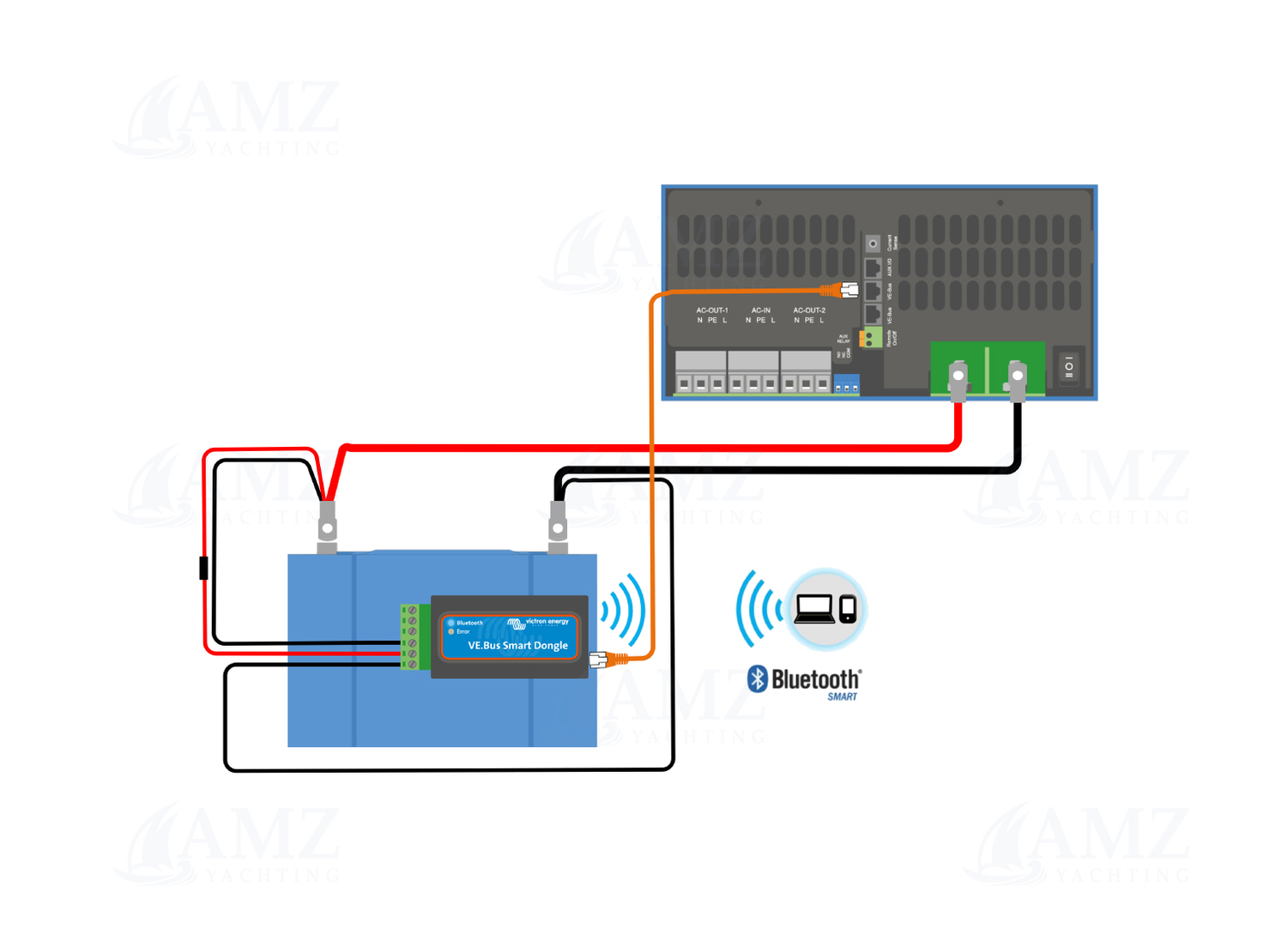

banner

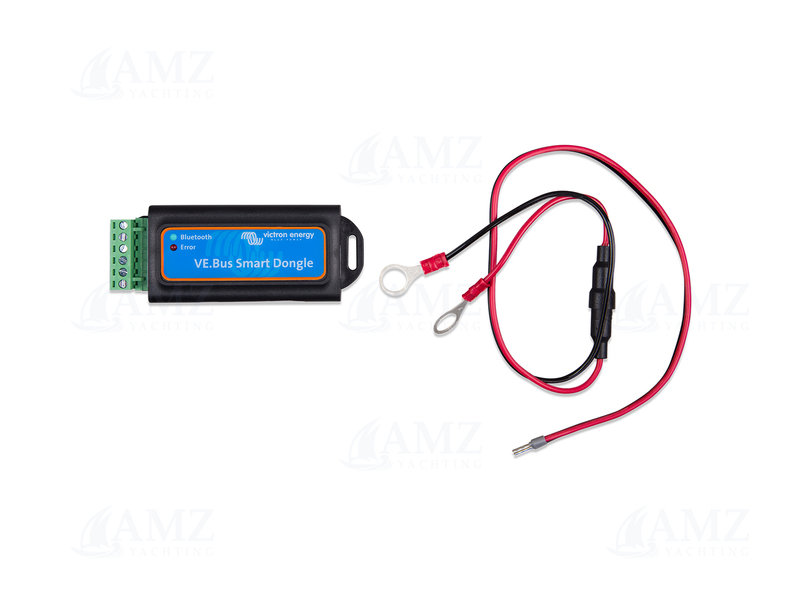

Package content:

1x VE.Bus smart dongle

1x Removable terminal block

1x Black battery connection wire

1x Red battery connection wire

130,20 €
Add to Cart
