Veratron / VDO

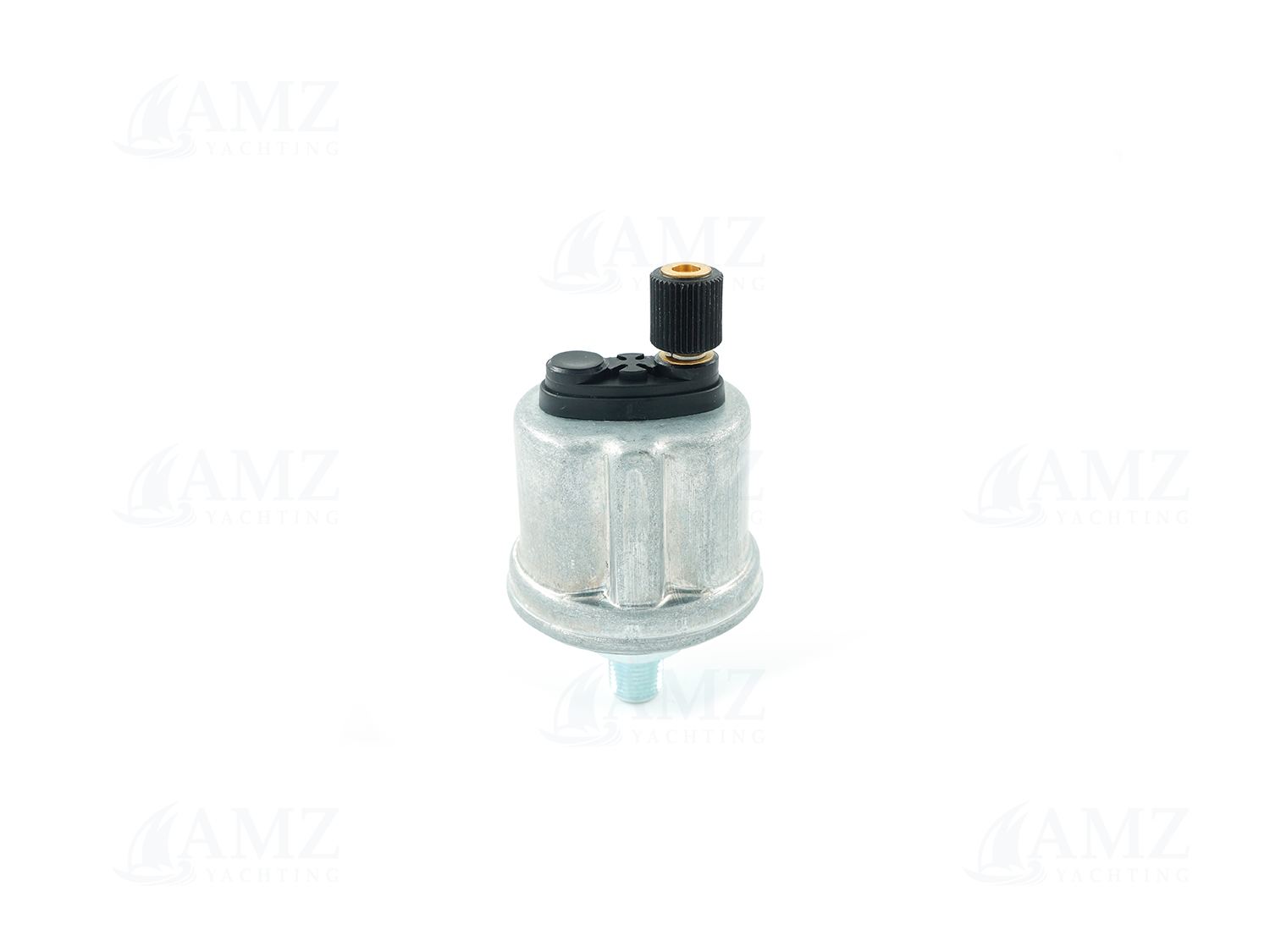

Pressure Sensor 10BAR/150PSI

SKU: 360-081-029-012C
Available
Add to Cart
Years Warranty
Official Distributor

Description

Pressure sensor 10bar/150psi with common ground, no warning contact and 1/8"-27NPTF thread.

Used for: Oil, fuel, air



Sensor not in production.

Limited stock available.

Specifications

  • Nominal voltage : 12V|24V
  • Analogue output type : Resistive (Ω)
  • Signal resistance range : 10-184Ω
  • Pressure range : 10BAR/150PSI
  • Return signal : Common ground
  • Threads : 1/8" - 27 NPTF
  • Connector type : M4 Plastic knurled nut (1x)
