Avikus NEUBOAT
Camera Conversion Unit (CCU)
SKU: CCU
Upon Order (15-20Days)
Add to Cart
Years
Warranty
Official
Distributor
Description

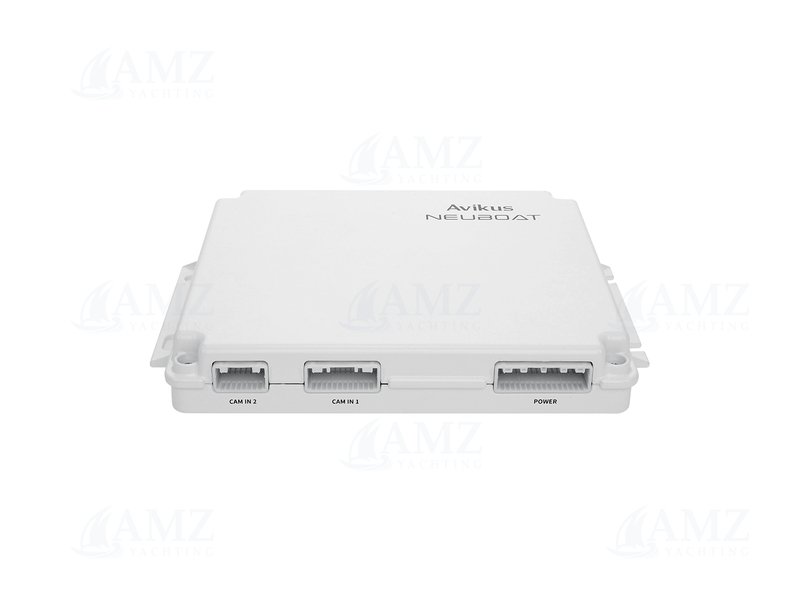

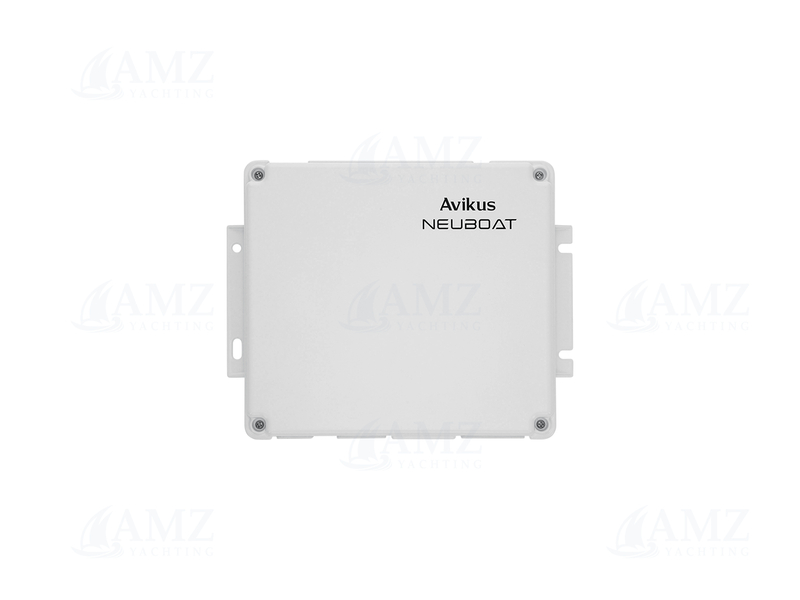

Receives 6 cameras signal and converts video signal to ethernet.
The maximum length if the SVM camera cable is 15m, and the distance between the ccu and each camera should not exceed the maximum cable length.
Specifications
- Input supply voltage : 10.8 to 32V DC
- Nominal voltage : 12V|24V
- Consumption : 25W
- Connectivity : Ethernet

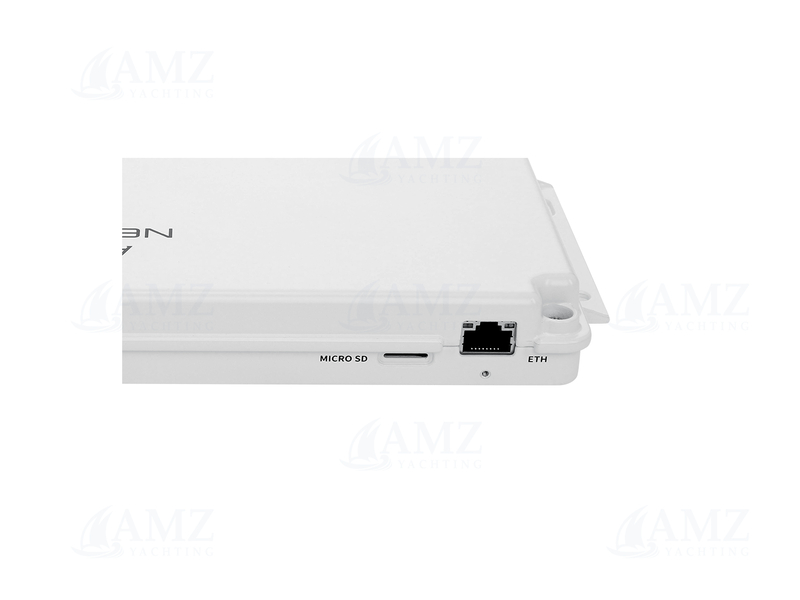

- Extras : Micro SD
- Connector type : Ethernet (RJ45)
- Dimensions : 226x180x30mm
- Product weight : 0.7kg
Package content:
1x CCU
4x Fixing screws
1x CCU power cable (CA010LZ)
1x CCU Camera input1 cable (CF002MZ)
1x CCU Camera input2 cable (CF002NZ)
