Lecomble & Schmitt

Linear Drive RV2 + VHM40 ST16 - 12V

SKU: 2203066
Available in 4 - 10 days
Add to Cart

Description

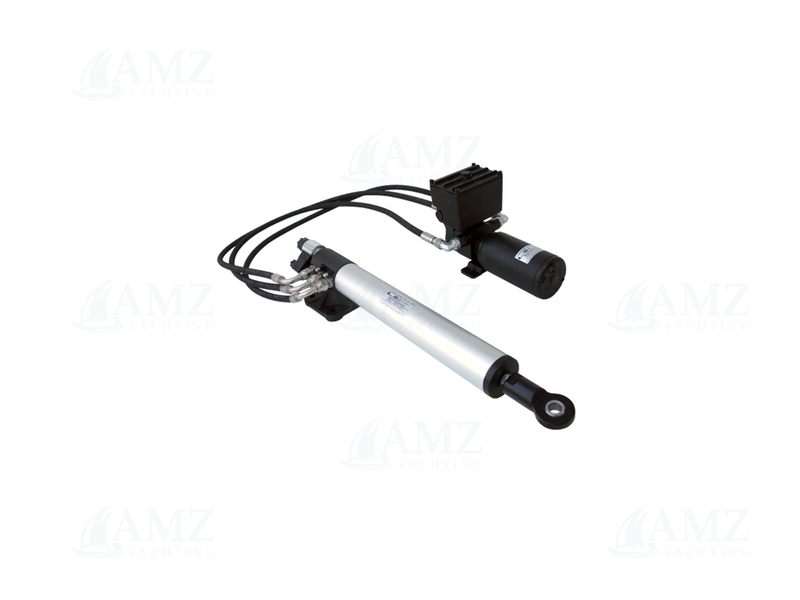

Single rod hydraulic linear assemblies for autopilot.


Features:

  • Directly fitted on the quadrant.
  • Possible floor, ceiling or bulkhead installation of the cylinder.
  • Separate reversible power pack with fixed flow for installation at your selected location.

Specifications

  • Nominal voltage : 12V
  • Maximum force : 450kg
  • Operating distance : 240mm

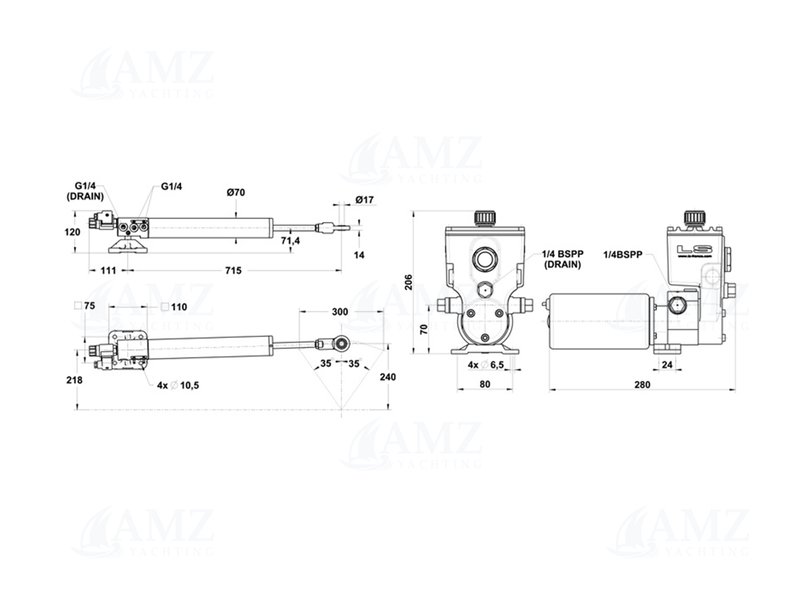

  • Dimensions : 563x120mm
  • Product weight : 3.5kg
2.302,89 €
