CPT-S Conical Thru-Hull Transducer 12° CPT-S Conical Thru-Hull Transducer 12° CPT-S Conical Thru-Hull Transducer 12°
Raymarine

Raymarine

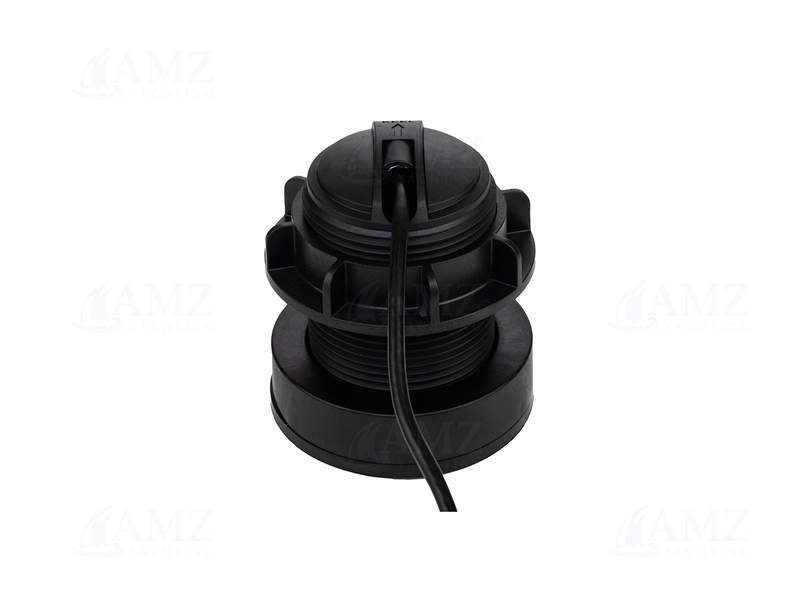

CPT-S Conical Thru-Hull Transducer 12°

SKU: A80448
Available
Add to Cart
Years Warranty

Description

The CPT-S family of through hull transducers provides high-resolution sonar imagery and reliable depth recording for Raymarine Element and Axiom chartplotters.

The low-profile design eliminates the need for a fairing block while offering excellent high-speed performance.


FEATURES:

  • Supports single High CHIRP sonar with a 25° conical beam
  • Available with 0°, 12°, and 20° angled elements to compensate for various hull deadrise angles.
  • Integrated seawater temperature sensor
  • Up to 900 ft (274 m) depth range
  • Includes 10 meter cable


Deadrise angles: 7-17°

Specifications

  • Power : 90W
  • Depth range : High Chirp: 270m/900ft
  • Tilt : 12°
  • Frequency : High Chirp [170 to 230kHz]
  • Connector type : 9pin 1kW male XDCR
  • Mounting & Support : Thru-Hull
  • Material : Urethane|Plastic
  • Hole diameter : Ø 51mm

Documents

Related products

Adapter Cable for Transducer to AXIOM RV/AXIOM PRO
Raymarine

Adapter Cable for Transducer to AXIOM RV/AXIOM PRO

74,40€

Package content:

1x CPT-S transducer

1x Hull nut

1x Spacer

1x Rubber washer

1x Documentation

217,00 €
