Blue Sea Systems

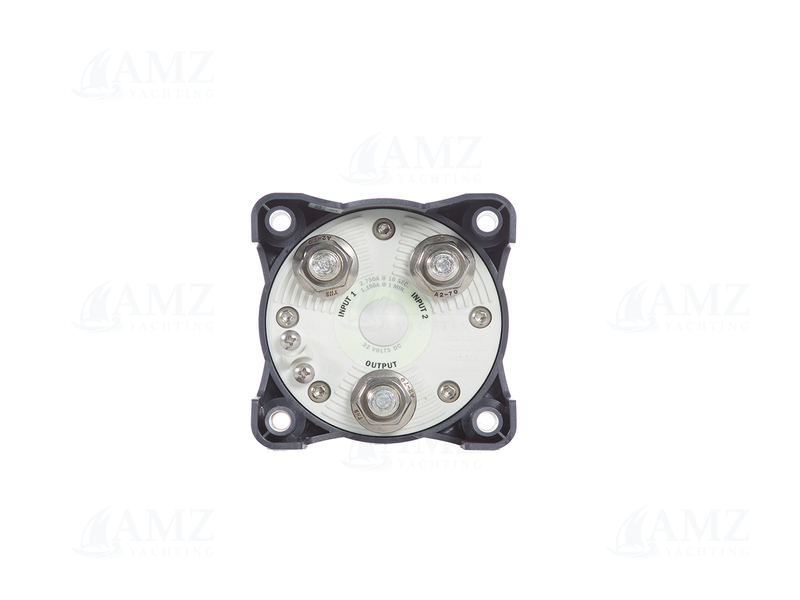

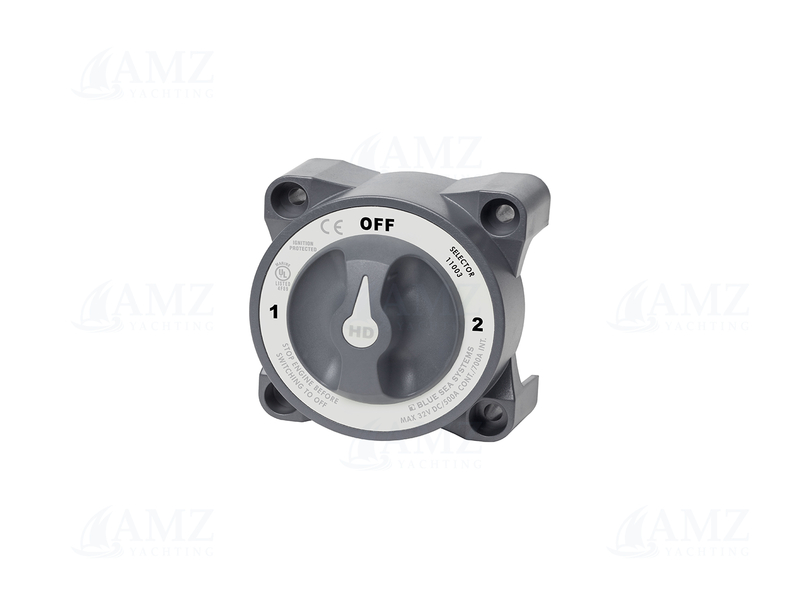

HD-Series Heavy Duty Selector Battery Switch with AFD
SKU: 11003
Available
Add to Cart
Description
Switches isolated battery banks to all loads.
Includes AFD (Alternator Field Disconnect)
Ignition protected—safe for installation aboard gasoline powered boats
Specifications
- Input supply voltage : 32V DC
- Nominal voltage : 12V|24V
- Permanent current : 400A
- Maximum current (peak) : 1600A
- Extras : 2 battery inputs|AFD
- Action ( )=momentary : ON-OFF-ON
- Switch positions : 3
- Color : Gray

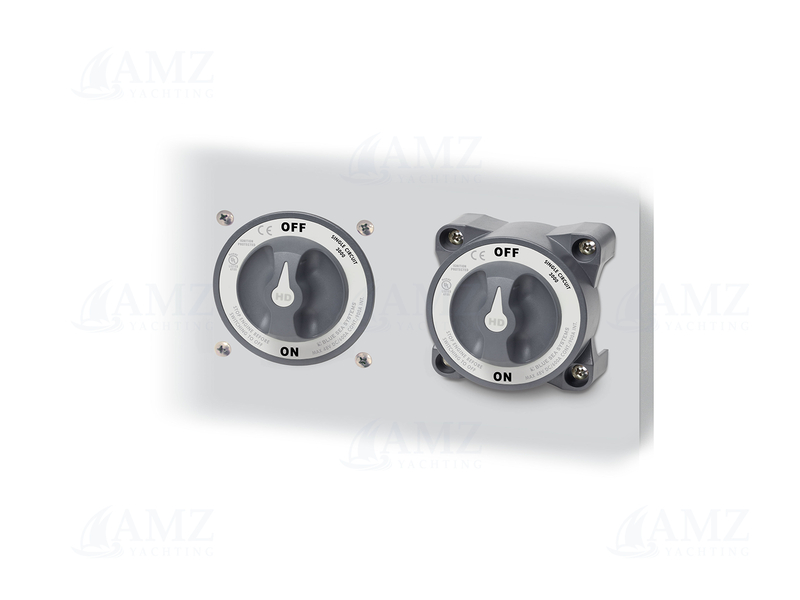

- Mounting & Support : Surface mount|Rear panel mount
- Dimensions : 98x98x79mm
- Product weight : 0.59kg
