Veratron / VDO

LinkUp Resistive Gateway

Name: LinkUp Resistive Gateway
Brand: Veratron / VDO
SKU: B00042201
Price: 125.25 EUR
Availability: InStock

SKU: B00042201

101,01 €

excl. VAT

Available

Add to Cart

Years Warranty

Official Distributor

The resistive LinkUp gateway is designed to interface and convert resistive sensors measurements (Temperature, Level or Pressure) to the NMEA2000 digital era.

Functions:

Rudder, Pressure, Trim, Waste water level, Fresh water level, Fuel level, Oil temperature, Coolant temperature.

Easy & Simple setup directly with NFC from the phone App.

No need for extra hardware.

Input supply voltage : 6-16.5 VDC
Nominal voltage : 12V
Consumption : <100 mA
Liquid type : Fuel|Fresh water|Waste water
Connectivity : NMEA2000|NFC
NMEA2000 outputs : Yes
Data transfer/conversion : Analogue to NMEA2000
Analogue input type : Resistive (Ω)
Signal resistance range : 0-400Ω
Connector type : Micro-C (NMEA2000)|AMP superseal plug
Dimensions : 125x17.5x32mm

Resistive LinkUp gateway

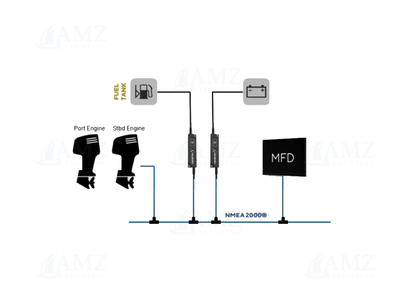

LinkUp gateway modules replace the original wiring, delivering power to both the LinkUp device and sensor from the NMEA 2000 backbone.

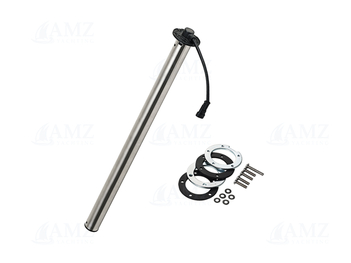

Plug-n-play installation with tubular level sensors

Wireless configuration:

The parameters of the sensor are configured to type, instance and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.
