Actisense

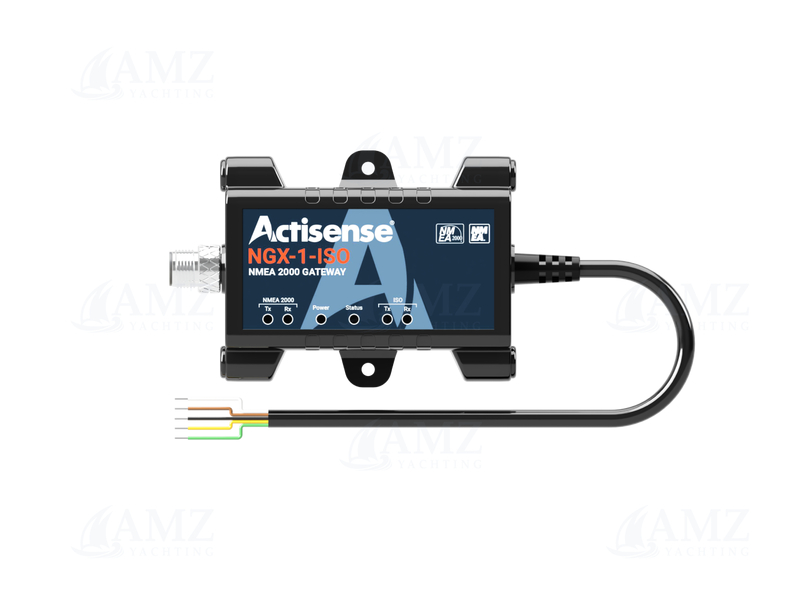

NMEA 2000 Dual Gateway - ISO

SKU: NGX-1-ISO
Available
Add to Cart
Years Warranty
Official Distributor

Description

The NGX-1 is an intelligent multi-function gateway, combining the power of our two previous generation products (NGT-1 and NGW-1) into one, cost effective, flexible product.

It provides an uncomplicated way to link between a boat’s data networks and converts NMEA 0183 data into NMEA 2000 data and vice-versa.

Multiple NGX-1 units can be used to multiplex numerous NMEA 0183 devices onto the NMEA 2000 network, using the network as a means of combining and transferring all data from one place to another.

The NGX-1 is also an NMEA 2000 to PC interface, able to precisely transfer messages to and from the NMEA 2000 bus. It is compatible with a wide range of chart-plotters, display and configuration applications available for PCs.

Specifications

  • Connectivity : NMEA2000|NMEA0183
  • NMEA2000 inputs : Yes
  • NMEA2000 outputs : Yes
  • NMEA0183 inputs : 1x
  • NMEA0183 outputs : 1x
  • Serial port compatibility : RS422|RS232
  • Data transfer/conversion : NMEA2000 to NMEA0183|NMEA2000 to NMEA0183 on PC com port|NMEA2000 to NMEA2000 on PC com port
  • Connector type : Micro-C (NMEA2000)

Features:

  • Vital NMEA 2000 diagnostic tool
  • ISO version has OPTO-isolated input and ISO-Drive™ output for safely interfacing with RS232 or RS422
  • Up to 230,400 baud data transfer rate
  • Supports Fast Heading at 10Hz
  • Integrated 1.5m drop cable


Benefits:

  • Allows all major PC Chartplotter applications to interface with the NMEA 2000 bus
  • Provides a rule-enforcing firewall between the PC and the NMEA 2000 bus
  • Upgrade NMEA 0183 equipment to NMEA 2000
  • Allow NMEA 0183 devices to receive vital NMEA 2000 data
  • Use the NMEA 2000 bus to multiplex several NMEA 0183 signals together
  • Easily configurable using Actisense Toolkit
