Actisense

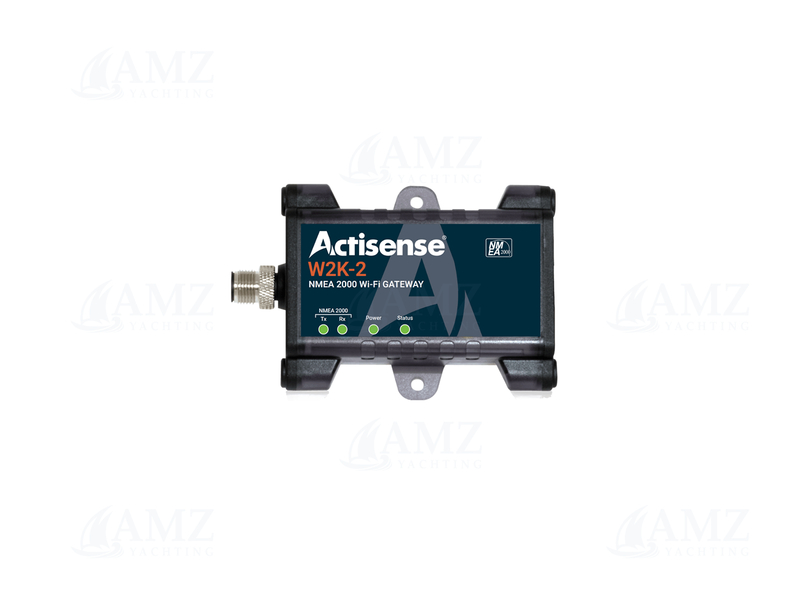

NMEA 2000 to Wifi Gateway

SKU: W2K-2

258,44 €

excl. VAT

Upon Order (30Days)

Add to Cart

Years Warranty

Official Distributor

The W2K-2 is a rugged and reliable NMEA 2000 to Wi-Fi Gateway with built-in data logger and Actisense-i diagnostic tools.

Transfer data from an NMEA 2000 backbone to any device (e.g laptop, tablet or smartphone) connected to the W2K-2 via Wi-Fi and additionally convert this data to NMEA 0183 using Actisense’s renowned conversion engine.

The W2K-2 will have the same data logging capability but won't come with an SD card included. You can simply install any SD card up to 128GB to enjoy weeks or indeed months of voyage logging.

Input supply voltage : 9 to 30 VDC
Nominal voltage : 12V|24V
Consumption : 70mA @ 12 VDC
Connectivity : NMEA2000|NMEA0183|Wifi
NMEA2000 inputs : Yes
NMEA2000 outputs : Yes
Data transfer/conversion : NMEA2000 to NMEA0183 on Wifi|NMEA2000 to NMEA2000 on Wifi
Connector type : Micro-C (NMEA2000)
Dimensions : 106mm(L)x73mm(W)x24mm(H)
Product weight : 80g

Features

Converts NMEA 2000 to/from NMEA 0183 (streamed over Wi-Fi)
Supports both TCP and UDP, streams data using up to three separate data servers
Data protocols are selectable to be compatible with a huge range of navigation software and apps
Diagnostic LEDs for NMEA 2000 bus activity and Wi-Fi Status
Works as an access point and client simultaneously
Remote Firmware upgradability
Low power- 2 LEN (100 mA)
Supports 802.11 b/g/h (up to 150Mbps)
Automatically measures and reports the NMEA 2000 bus voltage
User Manual embedded on the device, easily accessible via browser
Actisense-i diagnostic tools

Benefits

Two-in-one NMEA 2000 to Wi-Fi Gateway and data logger
Enables use of mobile devices and laptops without the hassle of a physical connection
Allows compatibility with a wide range of NMEA 2000 & NMEA 0183 applications
Ruggedised IP67 casing suitable for wet and harsh environments
Integrated antenna has less chance of physical damage
Quick and easy to install
