Maretron
NMEA2000 Fluid Pressure Monitor
SKU: FPM100
Available in 1 - 3 days
Add to Cart
Years
Warranty
Description

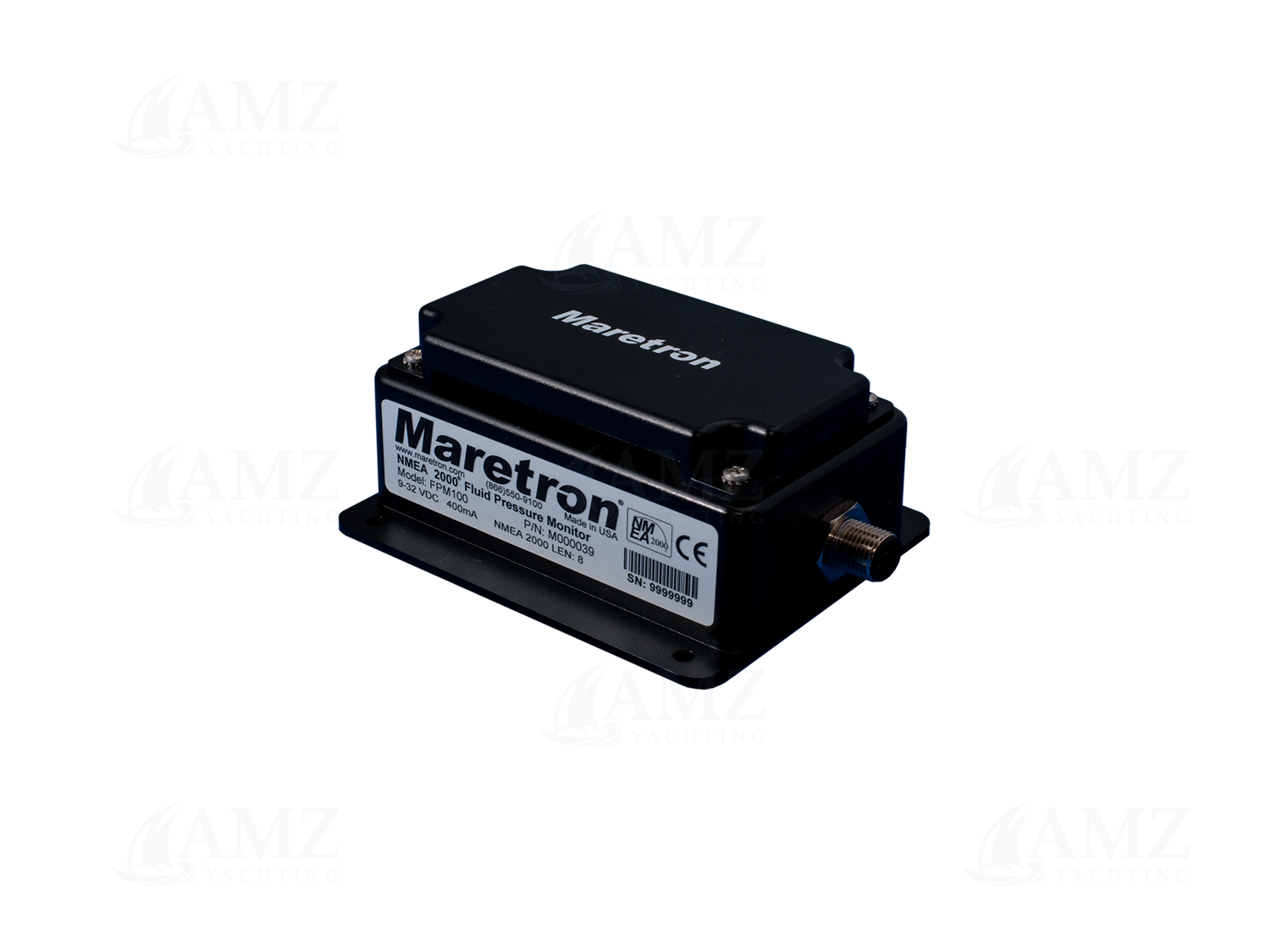

The Fluid Pressure Monitor is used to interface up to six pressure transducers to the NMEA2000 network.
This allows you to observe fluid pressures and tank levels anywhere on the vessel where there are NMEA2000 compatible displays. With the appropriate transducer, the FPM100 reports either pressure or vacuum for a variety of applications including water pressures, oil pressures, hydraulic pressures, or system vacuum for detecting clogged filters.

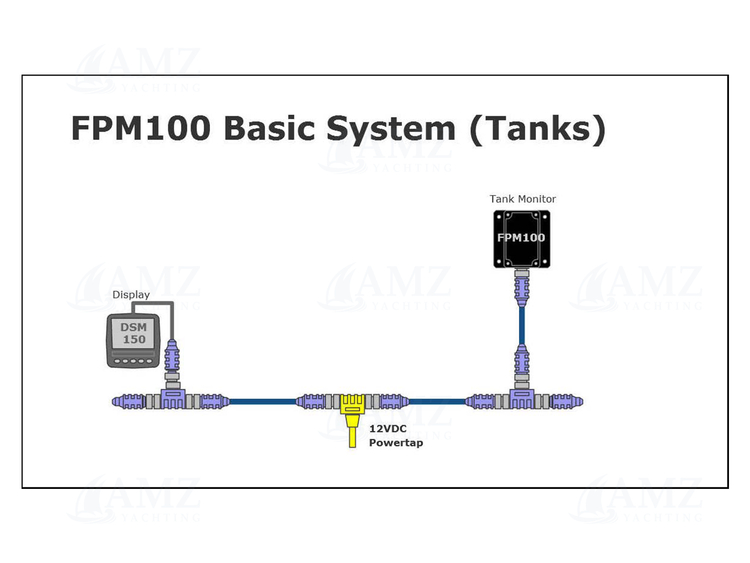

The FPM100 also has a tank level mode, so that fluid levels in a tank can be monitored via a pressure transducer mounted at the bottom of the tank and transmitted over the NMEA2000 network.
Specifications
- Input supply voltage : 9-32V DC
- Nominal voltage : 12V|24V
- Connectivity : NMEA2000
- Analogue input type : Capacitive (mA)
- Connector type : Micro-C (NMEA2000)
- Dimensions : 88.9x106.7x51.6mm
Related products
Interface and Monitor
The Fluid Pressure Monitor (FPM100) connects up to six pressure transducers to an NMEA2000 network, allowing fluid pressure, vacuum, and tank levels to be monitored on compatible displays throughout a vessel. It supports multiple applications such as water, oil, hydraulic pressure, and filter clog detection. Using a bottom-mounted pressure transducer, it can also accurately measure tank levels, including deep or irregularly shaped tanks, with calibration for true volume readings.
Product Features:
- Adapts up to six pressure transducers to the NMEA2000 network
- Each channel independently programmed to match pressure transducer characteristics
- Each channel independently programmed in pressure/vacuum mode or tank level mode
- In Tank Level Mode, measures levels of extremely deep or irregularly shaped tanks
