Victron energy

Smart Battery Monitor BMV-712

SKU: BAM030712000
Add to Cart
Years Warranty


With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era.


  • Battery voltage, current, power, ampere-hours consumed and state of charge
  • Remaining time at the current rate of discharge
  • Programmable visual and audible alarm
  • Programmable relay, to turn off non critical loads or to run a generator when needed

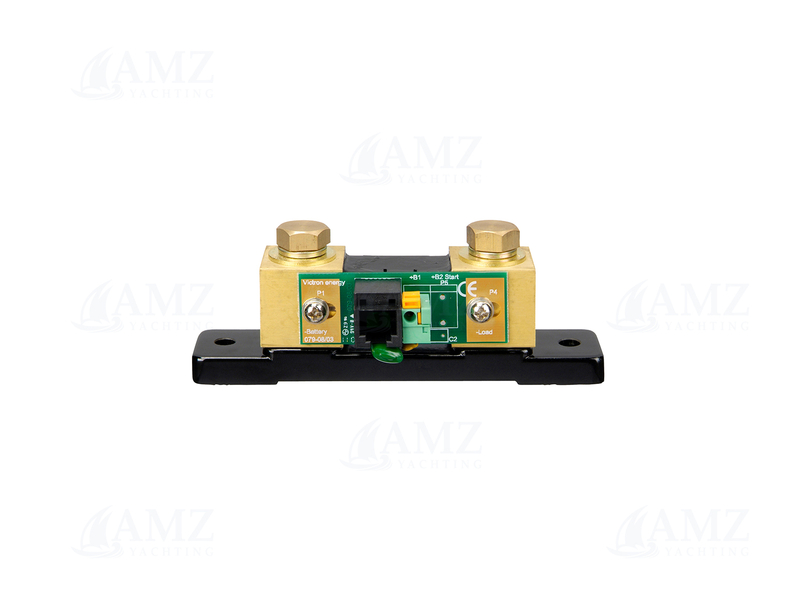

  • 500 Amp quick connect shunt and connection kit
  • Shunt selection capability up to 10,000 Amps
  • VE.Direct communication port
  • Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
  • Wide input voltage range: 6.5 – 70 V
  • High current measurement resolution: 10 mA (0.01 A)
  • Additional input to measure voltage (of a second battery), temperature or midpoint voltage, and corresponding alarm and relay settings


  • Input supply voltage : 6.5-70V DC
  • Nominal voltage : 12V|24V|48V
  • Connectivity : Bluetooth|VE.Direct
  • Connector type : VE.Direct|RJ12 female
  • Mounting & Support : Flush mount
  • Diameter : 63mm

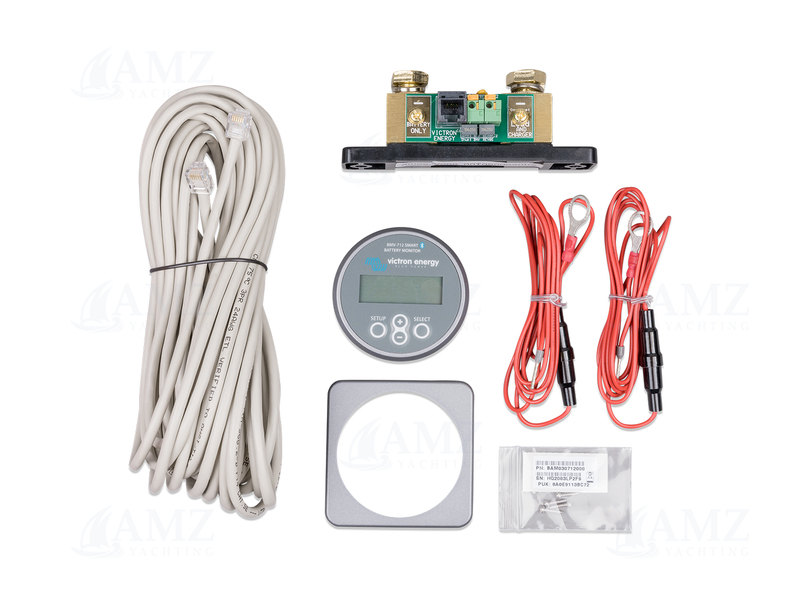

Package content:

1x BMV-712

1x 500A shunt

1x Cables with fuse

1x 10m RJ12 cable

1x Square plate

4x Small screws

1x Installation guide

209,56 €
Add to Cart
