12V/150A Windlass Relay
SKU: T6315-12
Available
Add to Cart
Description
The contactor and reversing contactor units T6315 or T6415 are able to operate electric motors for windlasses and capstans.
Thanks to their external connections, they are very easy to install.
Maximum contact voltage: 48V DC
Maximum power of the windlass/capstan motor: 2500W
Specifications
- Nominal voltage : 12V
- Permanent current : 150A
- Maximum current (peak) : 800A
- Circuit : Dual

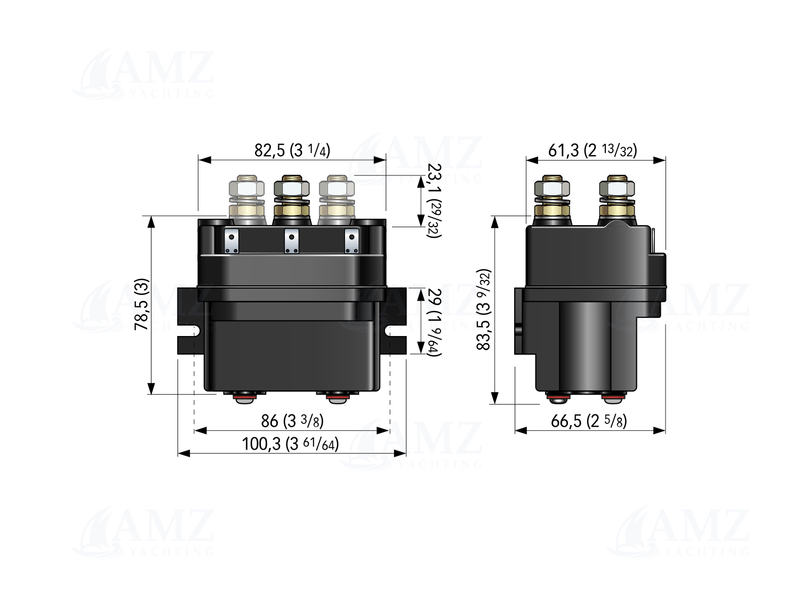

- Dimensions : 100.3x78.5x66.5mm
- Product weight : 850g
