Veratron / VDO

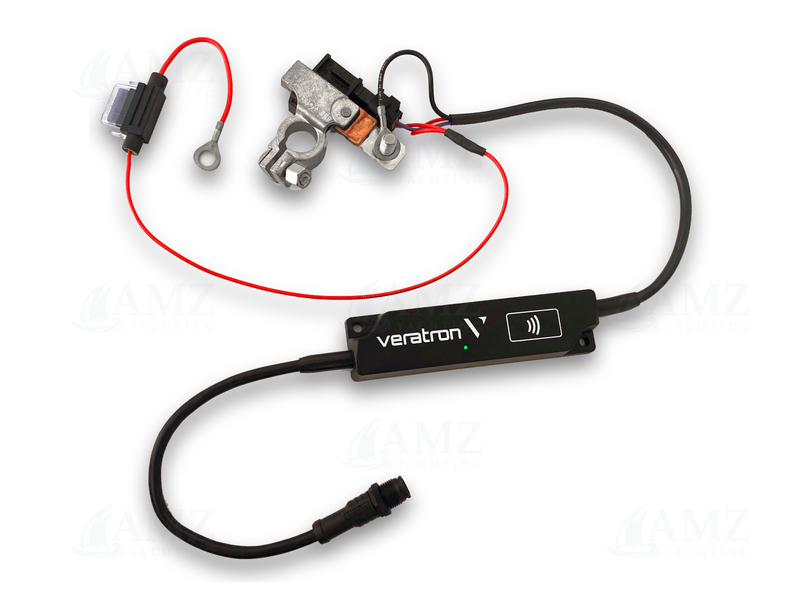

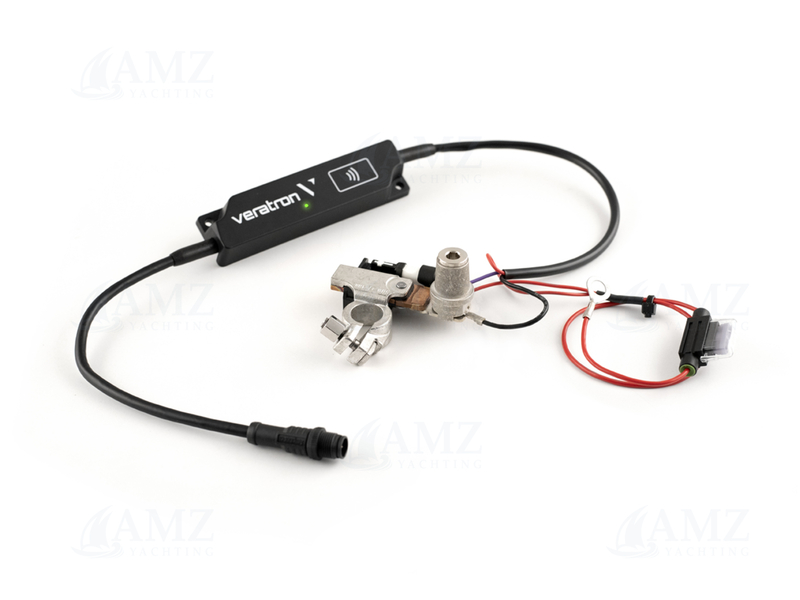

LinkUp IBS - 12V/249Ah

SKU: B00042501
Available
Add to Cart
Years Warranty
Official Distributor

Description

The Intelligent Battery Monitoring System, informs you about the current energy status, allowing you to plan your energy supply.

It is necessary to know its State of Charge, State of Health and any changes to the battery.


Delivered data:

-Battery Voltage

-Battery Current

-Battery Temperature

-State of Charge (SOC)

-State of Health (SOH)

-Autonomy


Supported battery types:

-Gel

-AGM

-Flooded (Lead)

Specifications

  • Input supply voltage : 6-16.5 V DC
  • Nominal voltage : 12V
  • Consumption : ≤ 15 mA
  • Connectivity : NMEA2000|NFC|LIN Bus
  • NMEA2000 outputs : Yes
  • Analogue input type : IBS
  • Capacity : 249Ah - 12V IBS
  • Permanent current : +/-155A
  • Maximum current (peak) : +/- 1500A - 12V IBS
  • Threads : M8 GND bolt
  • Connector type : Micro-C (NMEA2000)
banner

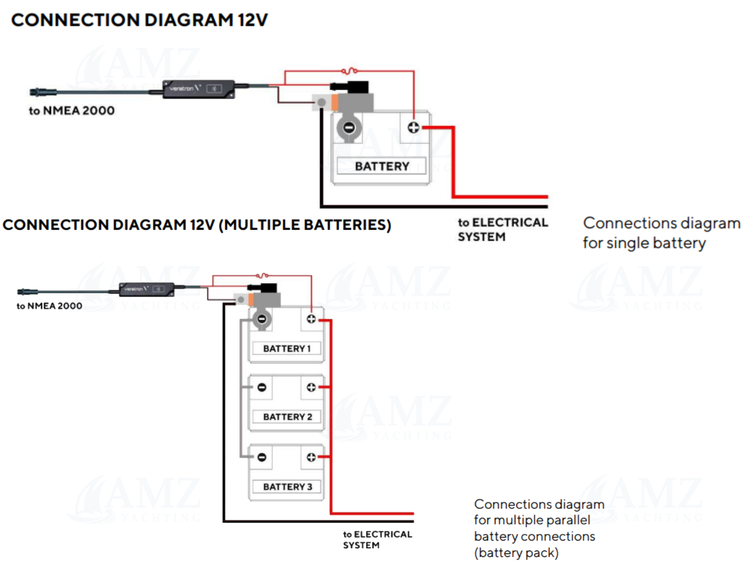

Connection & Diagram


The LinkUp interfaces the IBS sensor with the NMEA 2000® network to make all the information available for any display.

Wireless configurable, the Link Up gateway is also the access point for the configuration of the battery parameters.

The IBS after the simple electrical and mechanical integration, the sensor accurately measures the battery voltage, current and temperature parameters and internally calculates the State Of Charge, State Of Health and Time.
