Veratron / VDO

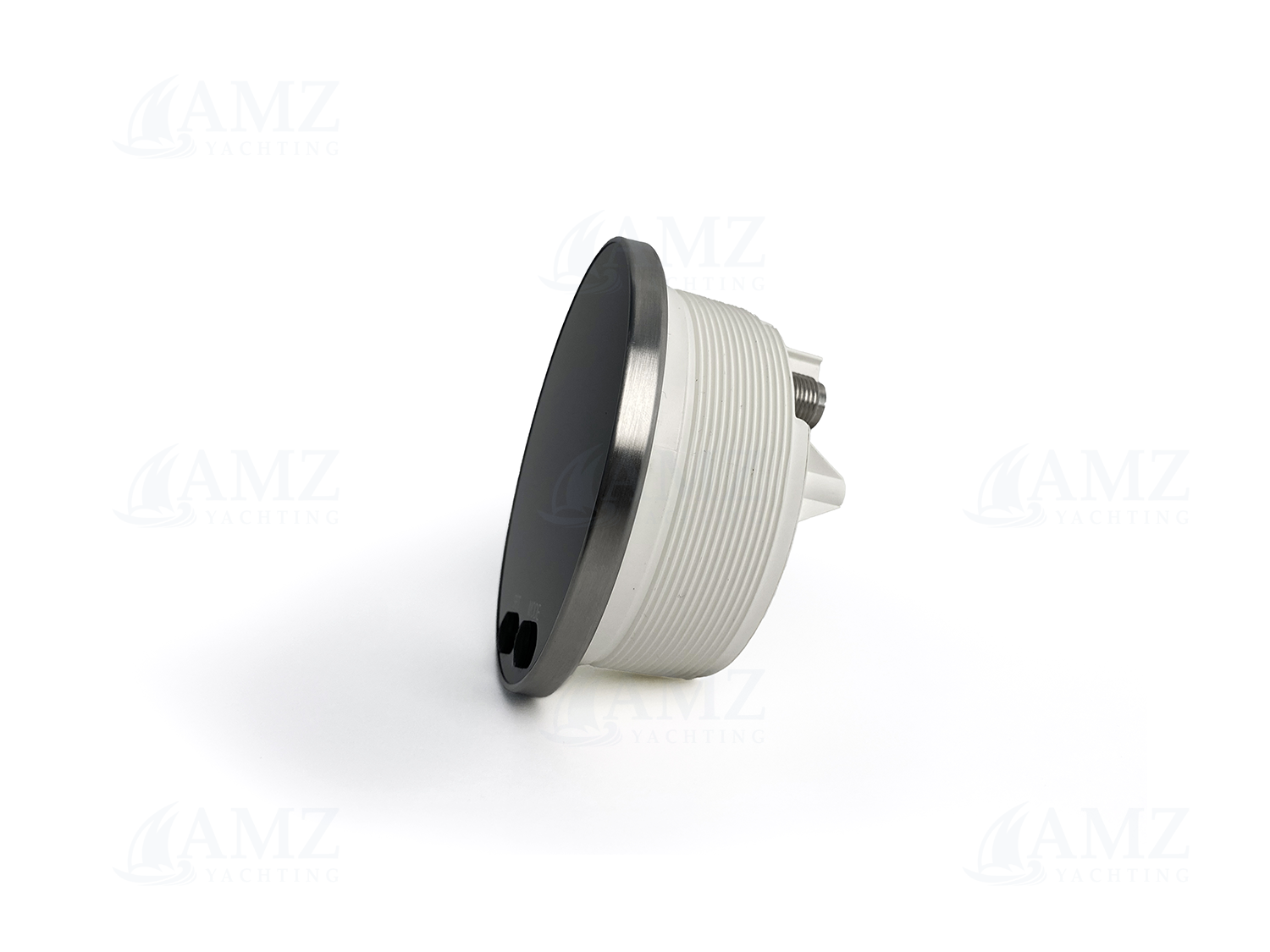

VMH35 Multifunction Gauge 85mm

SKU: B00085501

248,50 €

excl. VAT

Available

Add to Cart

Years Warranty

Official Distributor

The VMH35 multifunctional gauge is a NMEA 2000 certified device designed for monitoring outboard engines.

The VMH 35 has an embedded GNSS receiver to support and show navigation information, while it is able to monitor analogue input directly, such as fuel, trim, and tachometer. A special input is dedicated to the Veratron IBS (Intelligent Battery Sensor).

It can provide critical 12V battery monitoring information.

All these data are distributed to NMEA 2000 thanks to its embedded certified gateway.

It works perfectly for Mercury analog engines, from 25 to 150 HP. For more powerful engines, it is necessary to connect to the SmartCraft gateway.

Input supply voltage : 9-16 V DC
Nominal voltage : 12V
Consumption : < 100 mA @ 12 V
Connectivity : NMEA2000|EasyLink|LIN Bus
NMEA2000 inputs : Yes
NMEA2000 outputs : Yes
LIN inputs : 1x
EasyLink : 1x
Data transfer/conversion : Analogue to NMEA2000
Analogue input type : Resistive (Ω)|Frequency (Hz)|IBS|LIN Bus
Resistive signal inputs (Ω) : 2x
Frequency signal inputs (Hz) : 1x
Signal resistance range : 0-400Ω
Alarm inputs : 1x
RPM range : 8000rpm
Integrated features : GPS antenna

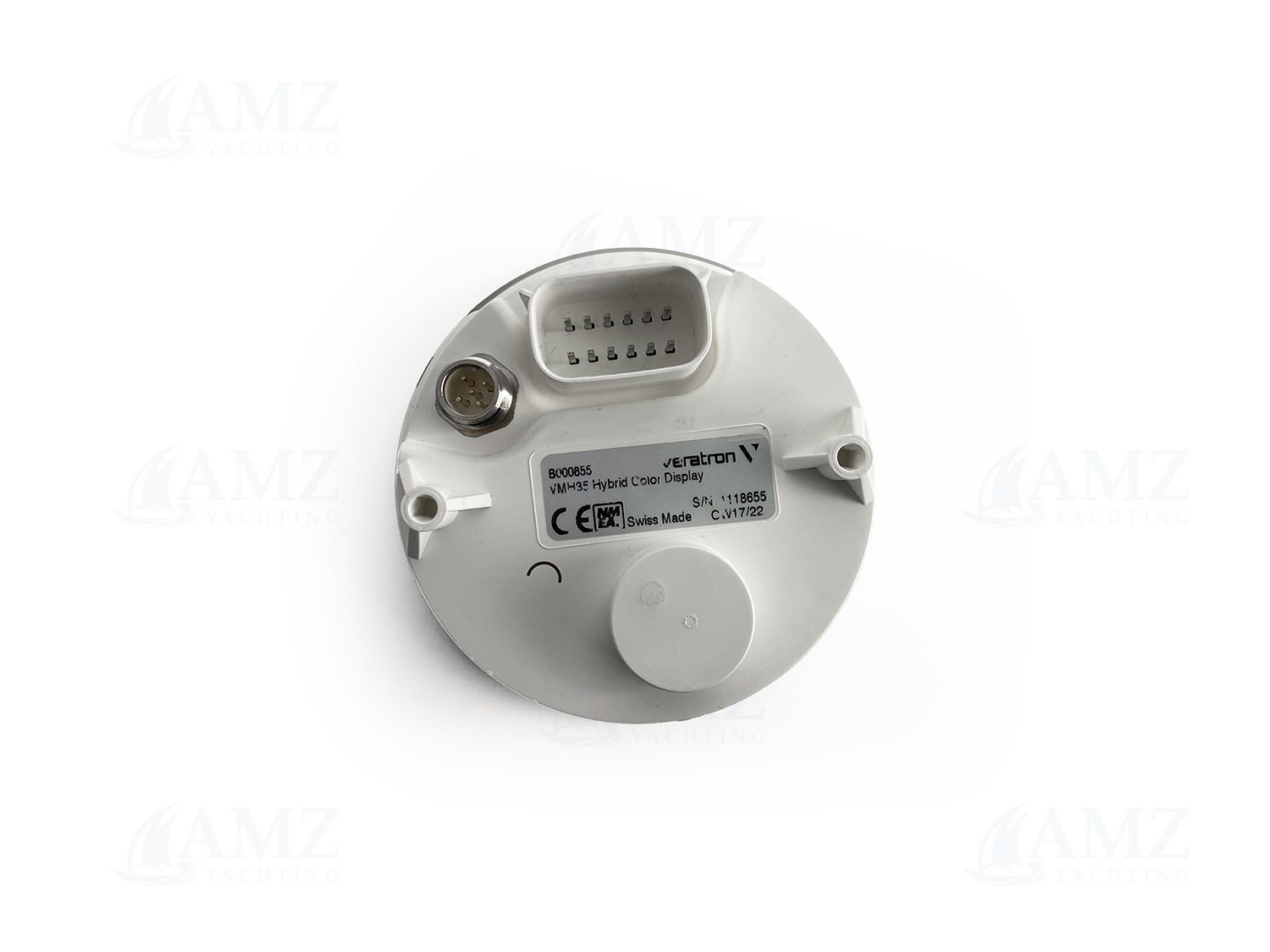

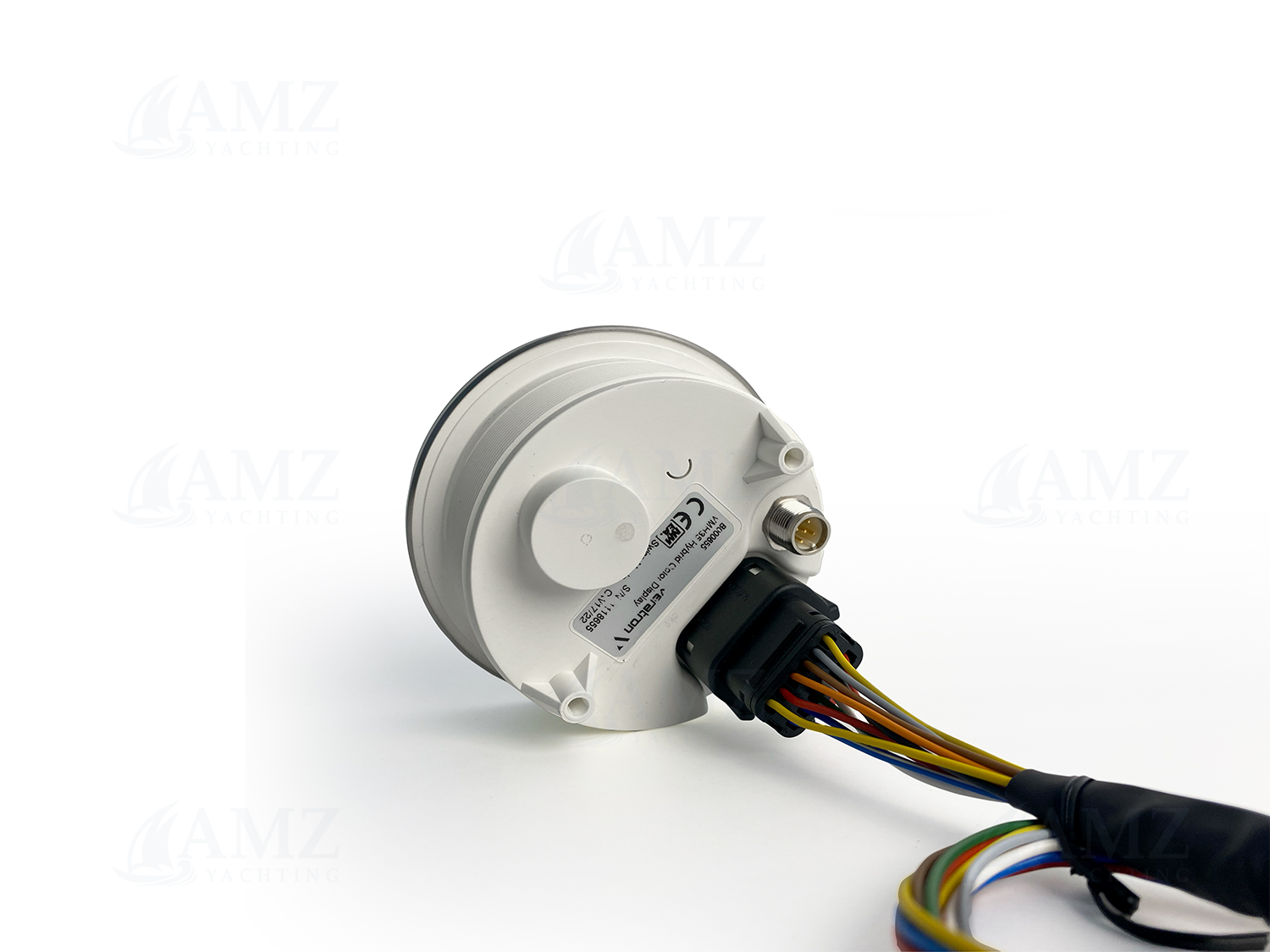

Connector type : Micro-C (NMEA2000)|Molex MX150
Diameter : 85mm

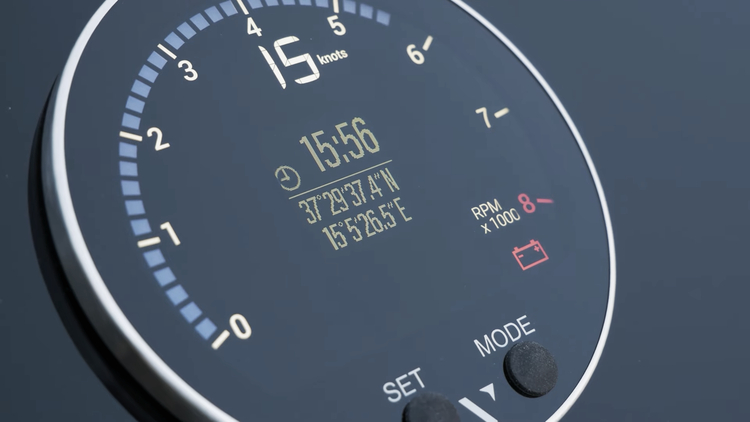

The VMH 35 has the capacity to provide 30 types of data including engine, EcoMode pop-up screen, RPMs up to 8'000 with a programmable overspeed alarm, tank levels, battery status, GPS and vessel information. It's easily configured using the embedded on-screen menu and soft-touch buttons.
