Description

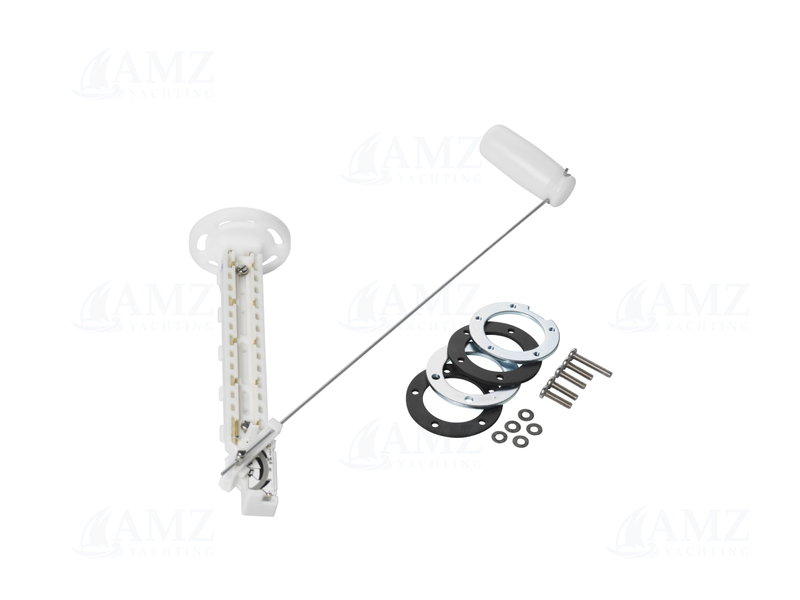

Single station resistive fuel level sensor with adjustable lever.

Specifications

  • Nominal voltage : 12V|24V
  • Liquid type : Fuel
  • Analogue output type : Resistive (Ω)
  • Signal resistance range : 3-180Ω|240-33.5Ω
  • Return signal : Insulated return
  • Connector type : AMP Blade 6.3X0.8mm
  • Mounting & Support : 54mm SAE 5-hole flange
  • Length : 150-600mm
