Veratron / VDO

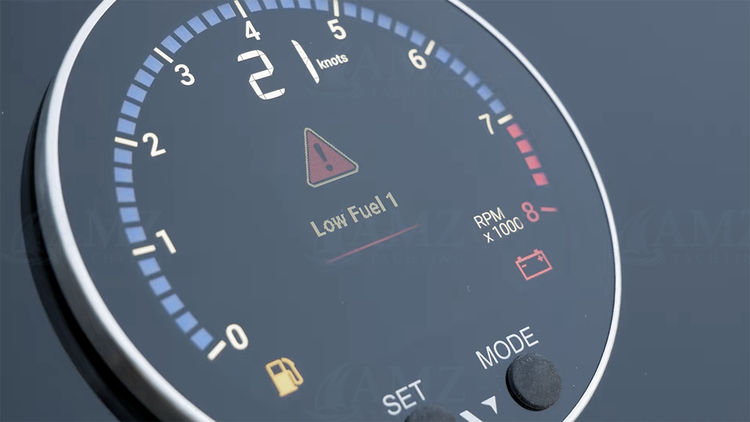

VMH35 Multifunction Gauge 85mm for Suzuki
SKU: -
Choose Configuration variant
Add to Cart
Years
Warranty
Official
Distributor
Description
The VMH 35 is the perfect standalone solution for monitoring your Suzuki outboard engines.
Equipped with analogue inputs it is also well suited to refitting older engines allowing the direct connection of various sensors such as fuel, trim and tachometer, while the built-in NMEA 2000 gateway distributes
these measurements to other digital network devices such as chartplotters, saving the need for an external converter.
Plug & play multifunction gauge with pre-installed connectors for Suzuki.
Specifications
- Input supply voltage : 9-16V DC
- Nominal voltage : 12V
- Consumption : < 100mA @ 12V
- Connectivity : NMEA2000|EasyLink|LIN Bus
- NMEA2000 inputs : Yes
- NMEA2000 outputs : Yes
- Analogue input type : Resistive (Ω)|Frequency (Hz)|Trim (PWM)
- Resistive signal inputs (Ω) : 1x
- Frequency signal inputs (Hz) : 1x
- Signal resistance range : 0-400Ω
- Alarm inputs : 2x
- Alarm outputs : 1x
- RPM range : 4000rpm
- Connector type : Micro-C (NMEA2000)|Molex MX150
- Diameter : 85mm
Documents
Supported Suzuki engine models:
DF8A20-DF25A30 series
DF40A-60A series
DF70A-100B series
DF100C-140B series
DF150A-200A series
DF300B-350A series
Harness required for using the analog gauge:
36620-93JA0, 36620-93JB0, or 36620-93JC0.
For DF8A-20A, use 36620-89L10, and for DF25A-30A, use 36620-94L20.
