Veratron / VDO

LinkUp IBS - 24V/255Ah

SKU: B00070401
Add to Cart
Years Warranty
Official Distributor


The Intelligent Battery Monitoring System, informs you about the current energy status, allowing you to plan your energy supply.

It is necessary to know its State of Charge, State of Health and any changes to the battery.

Delivered data:

-Battery Voltage

-Battery Current

-Battery Temperature

-State of Charge (SOC)

-State of Health (SOH)


Supported battery types:



-Flooded (Lead)


  • Input supply voltage : 7.5-32 V DC
  • Nominal voltage : 24V
  • Consumption : ≤ 16 mA
  • Connectivity : NMEA2000|NFC|LIN Bus
  • NMEA2000 outputs : Yes
  • Analogue input type : IBS
  • Capacity : 255Ah - 24V IBS
  • Permanent current : +/-200A
  • Maximum current (peak) : +/- 2000A - 24V IBS
  • Threads : M8 GND bolt
  • Connector type : Micro-C (NMEA2000)

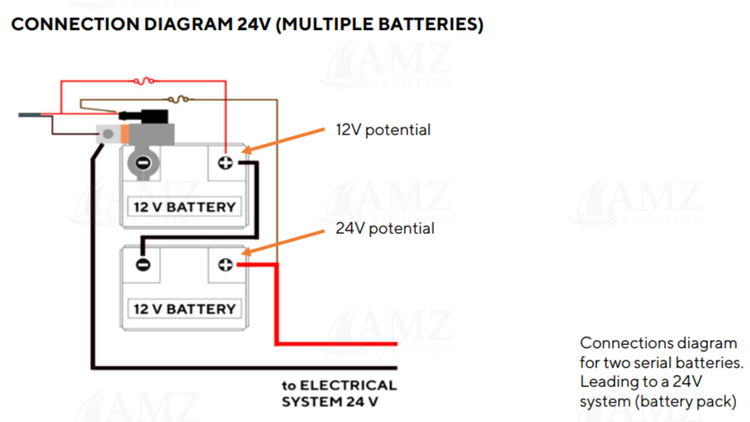

Connection & Diagram

The LinkUp interfaces the IBS sensor with the NMEA 2000® network to make all the information available for any display.

Wireless configurable, the Link Up gateway is also the access point for the configuration of the battery parameters.

The IBS after the simple electrical and mechanical integration, the sensor accurately measures the battery voltage, current and temperature parameters and internally calculates the State Of Charge, State Of Health and Time.

375,70 €
