NAC-3 Autopilot Computer

SKU: 000-13250-001
Add to Cart
Years Warranty
Certified Dealer

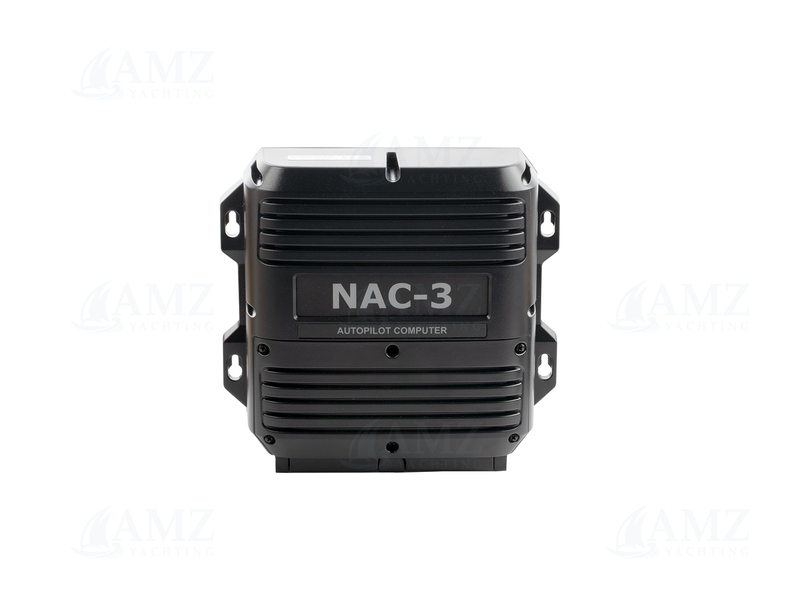

The NAC-3 Autopilot Computer is the brains behind your B&G autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units.

Industry-standard NMEA 2000 networking and NMEA 0183 input allow simple connectivity to heading sensors, rudder feedback units, autopilot controllers, and multifunction displays located anywhere on board.

The NAC-3 supports SimNet or NMEA 2000® connected RF25 feedback units, and rudder feedback sensors with variable frequency output including the RF300.


  • Nominal voltage : 12V|24V
  • Power : 750W
  • Connectivity : NMEA2000|NMEA0183
  • NMEA0183 inputs : 1x
  • NMEA0183 outputs : 1x
  • Baud rate : 4800 to 38400 bps
  • Alarm outputs : 1x
  • Transducer inputs : Rudder
  • Rudder/Angle transducer inputs : Frequency (RF300/RF45X)
  • Integrated features : Analogue remote input
  • Dimensions : 204x190x57mm
  • Product weight : 0.7kg

Package content:

1x NAC-3 autopilot computer

1x Micro-C T-joiner

1x Micro-C cable

2.176,12 €
Add to Cart
