B&G

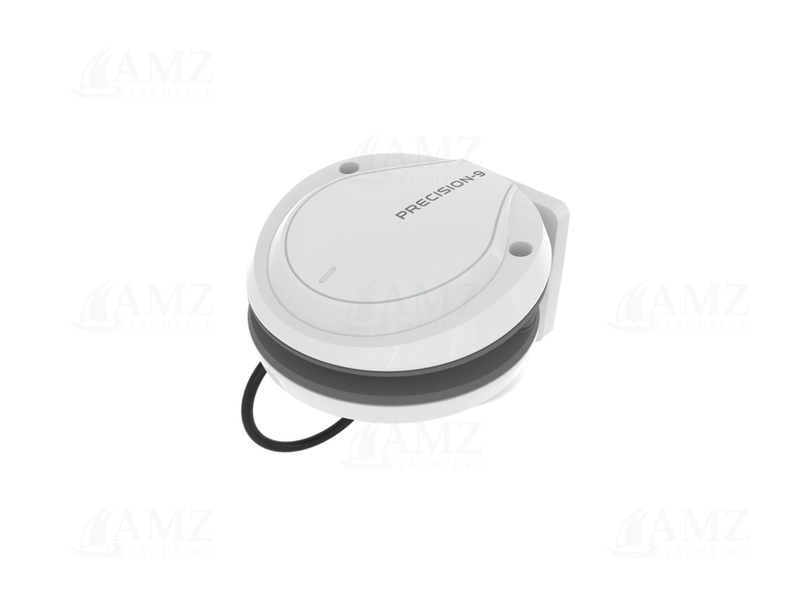

Precision-9 Compass

SKU: 000-12607-001
Available
Add to Cart
Years Warranty
Certified Dealer

Description

Precision-9 Compass supplies heading and rate-of-turn information to Simrad, B&G and Lowrance autopilot, radar and navigation systems.


Features:

  • Heading, Rate Of Turn (ROT), Roll, and Pitch output over NMEA 2000
  • Heading and ROT calculated using 9 axis sensor data of rotation and motion
  • Accurate and reliable solid-state sensor technology
  • Heading accuracy of ±2° after calibration

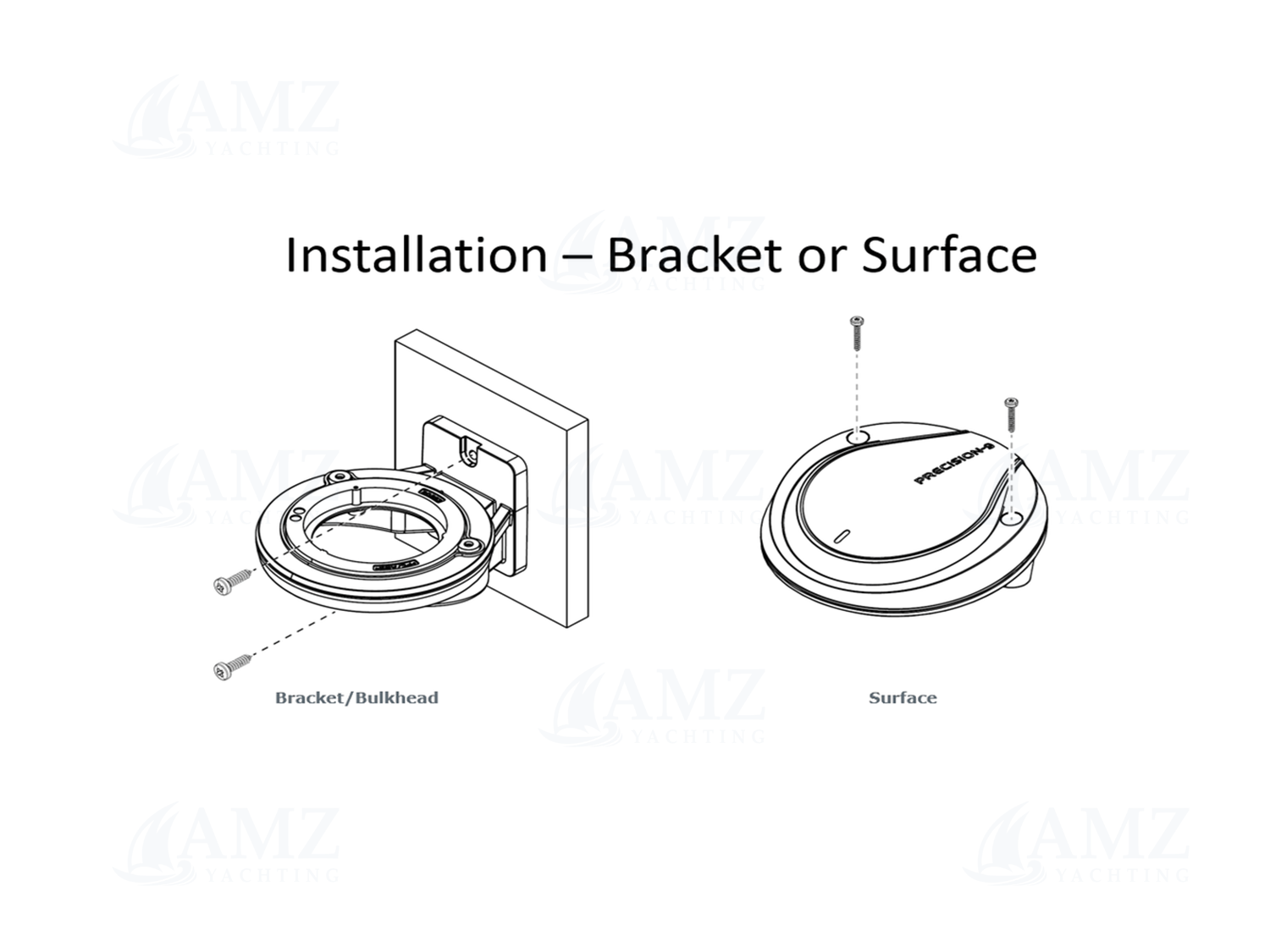

  • Easily adjustable mounting bracket allows bulkhead or up-mast installation
  • IPX7 waterproof. Best in class.
  • Simple installation with a single NMEA 2000 connection

Specifications

  • Input supply voltage : 8-16V DC
  • Nominal voltage : 12V
  • Connectivity : NMEA2000
  • NMEA2000 inputs : Yes
  • NMEA2000 outputs : Yes
  • Integrated features : Pitch&Roll|Heading|Rate of turn
  • Connector type : Micro-C (NMEA2000)
  • Material : Plastic
  • Dimensions : 119x36mm
