Digital Yacht

veLink – Victron BT to NMEA 2000

SKU: ZDIGVELINK

230,00 €

excl. VAT

Available

Add to Cart

Years Warranty

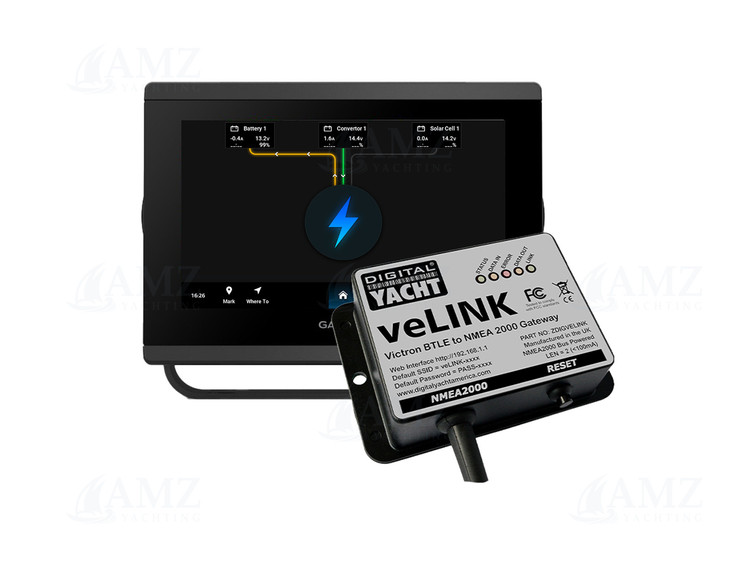

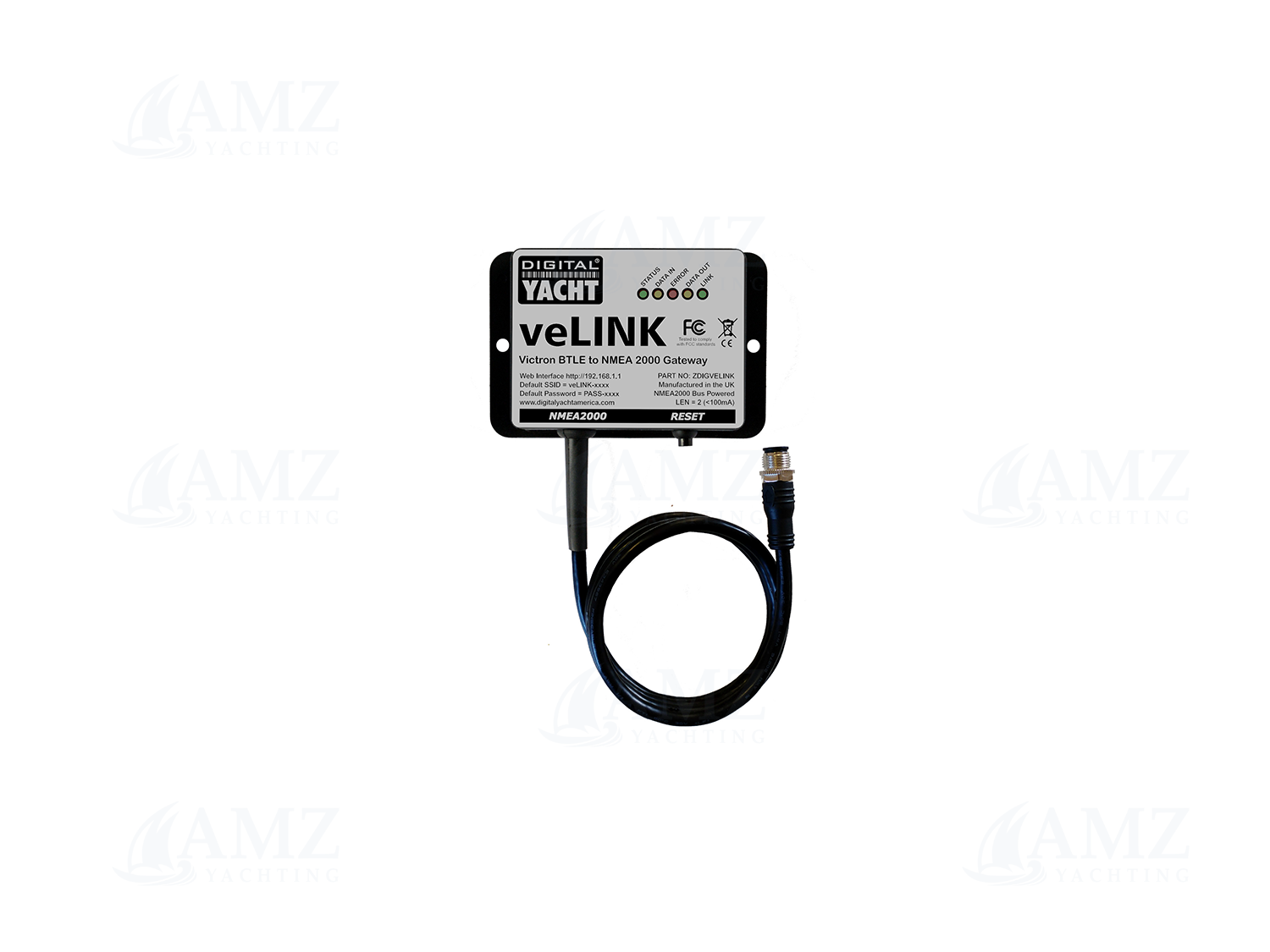

The veLink allows you to wirelessly connect up to eight Victron devices equipped with a Bluetooth interface to your NMEA 2000 network.

Features:

Connects Victron Bluetooth devices to the NMEA 2000 network
Connect up to 8 Victron devices simultaneously
Direct conversion to the NMEA2000 network
Available data: voltage, current, SOC, temperature, alarms, state of charge
Display on MFDs and multifunction displays with NMEA2000 interface – no app or phone required
No additional wiring on the Victron side
Fully compatible with all SmartShunt and BMV-712 Smart models, MPPT BlueSolar / SmartSolar solar chargers, 220 V Blue Smart Chargers, as well as Orion-TR Smart converters.
Powered by the NMEA 2000 network
Plug & play installation

Nominal voltage : 12V|24V
Connectivity : NMEA2000|Bluetooth
NMEA2000 outputs : Yes
Connector type : Micro-C (NMEA2000)
Dimensions : 105x72x31.5mm

Digital yacht VeLink datasheet

veLink enables the retrieval of essential data from Victron battery monitors (SmartShunt, BMV, etc.) on multifunction displays and chartplotters connected to the NMEA 2000 network: current consumption, battery voltage, service and engine battery status, as well as remaining autonomy/SOC displayed on chartplotters.

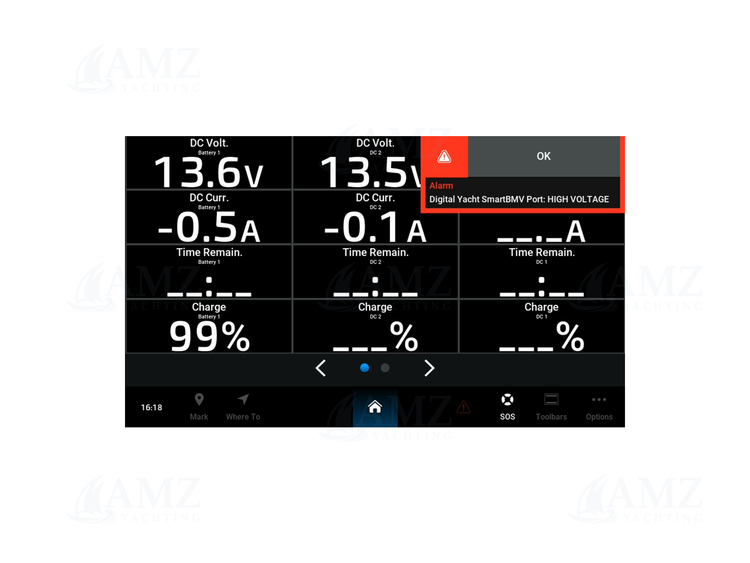

The veLink centralizes alarms from all these Victron devices allowing you to be immediately notified on your chartplotter or multi-function display in case of an issue, even without a smartphone.

It is also possible to customize the names of all devices on the NMEA2000 network, for example: engine battery, service battery, windlass battery, starboard solar panel, etc.
